Facade Profiles

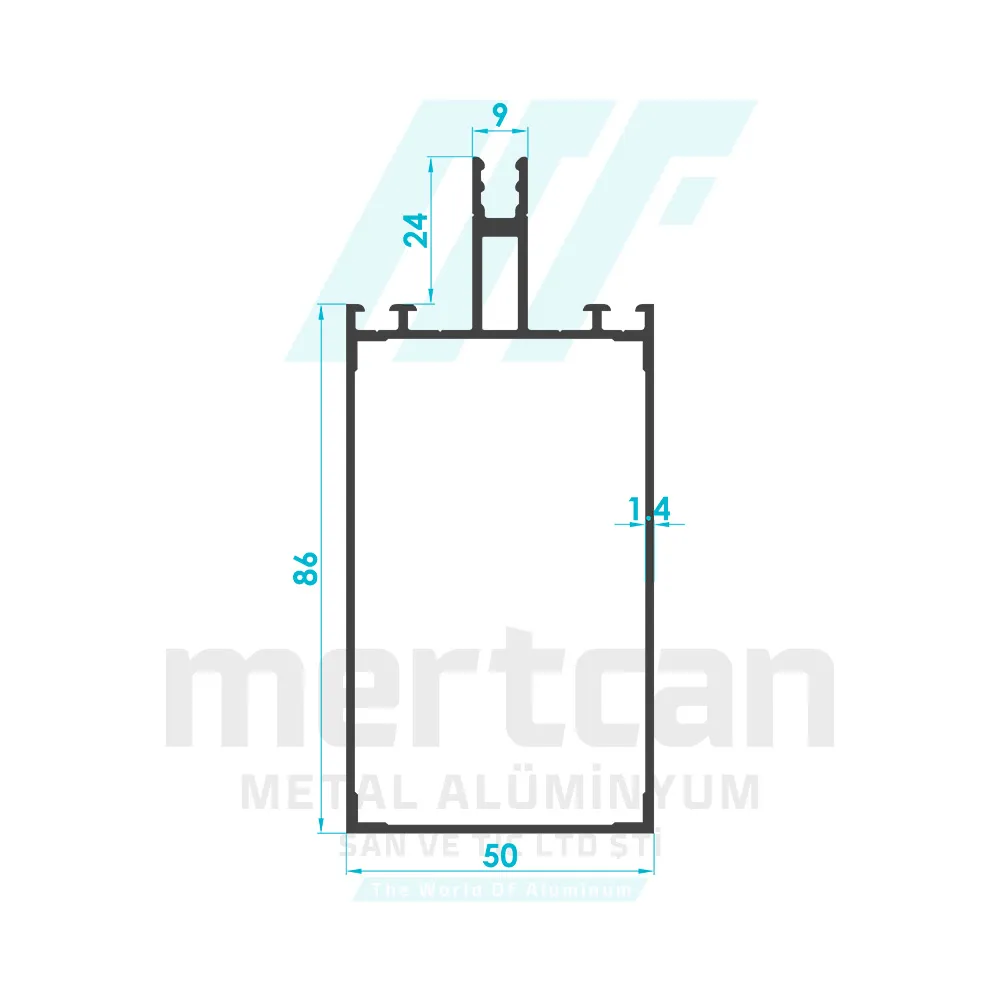

86mm Horizontal Facade Profile (Long Beak)

Product Code: 3082

Weight: 1.413 kg/m

With its long beak detail facilitating water drainage, it is an 86mm horizontal facade profile weighing 1.4 kg.

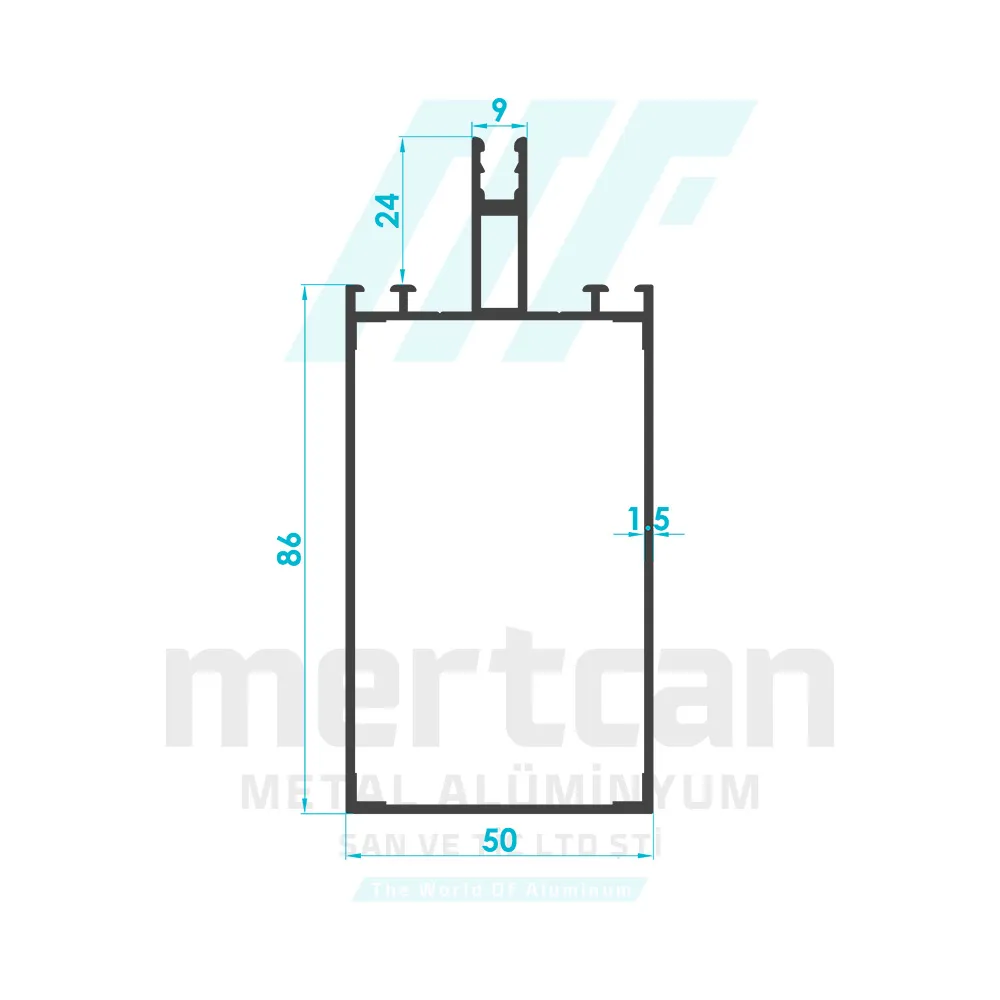

86mm Horizontal Facade Profile (Long Beak)

Product Code: 3159

Weight: 1.454 kg/m

With reinforced wall thickness, it is a wind load resistant 86mm series horizontal carrier.

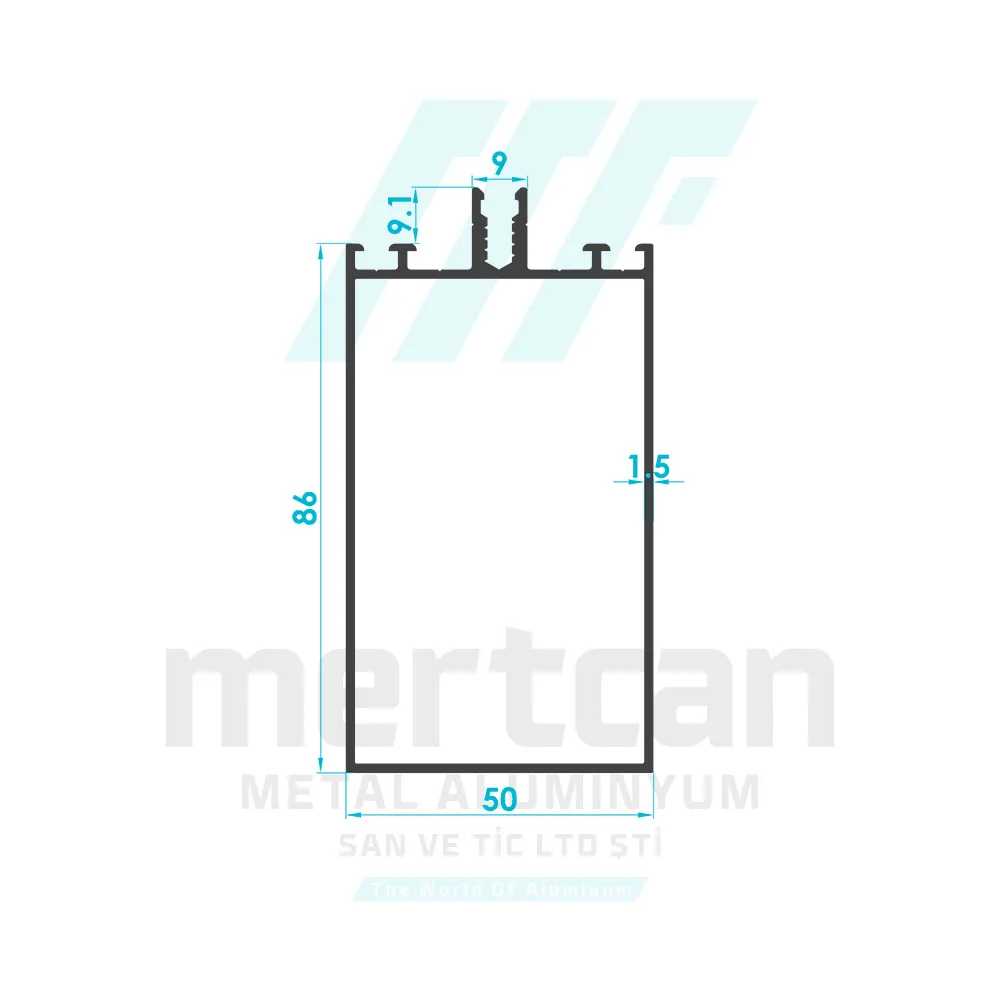

86mm Horizontal Facade Profile (Short Beak)

Product Code: 3663

Weight: 1.084 kg/m

Offering a flatter facade look with its short beak structure, it is an economical horizontal profile in the 1 kg class.

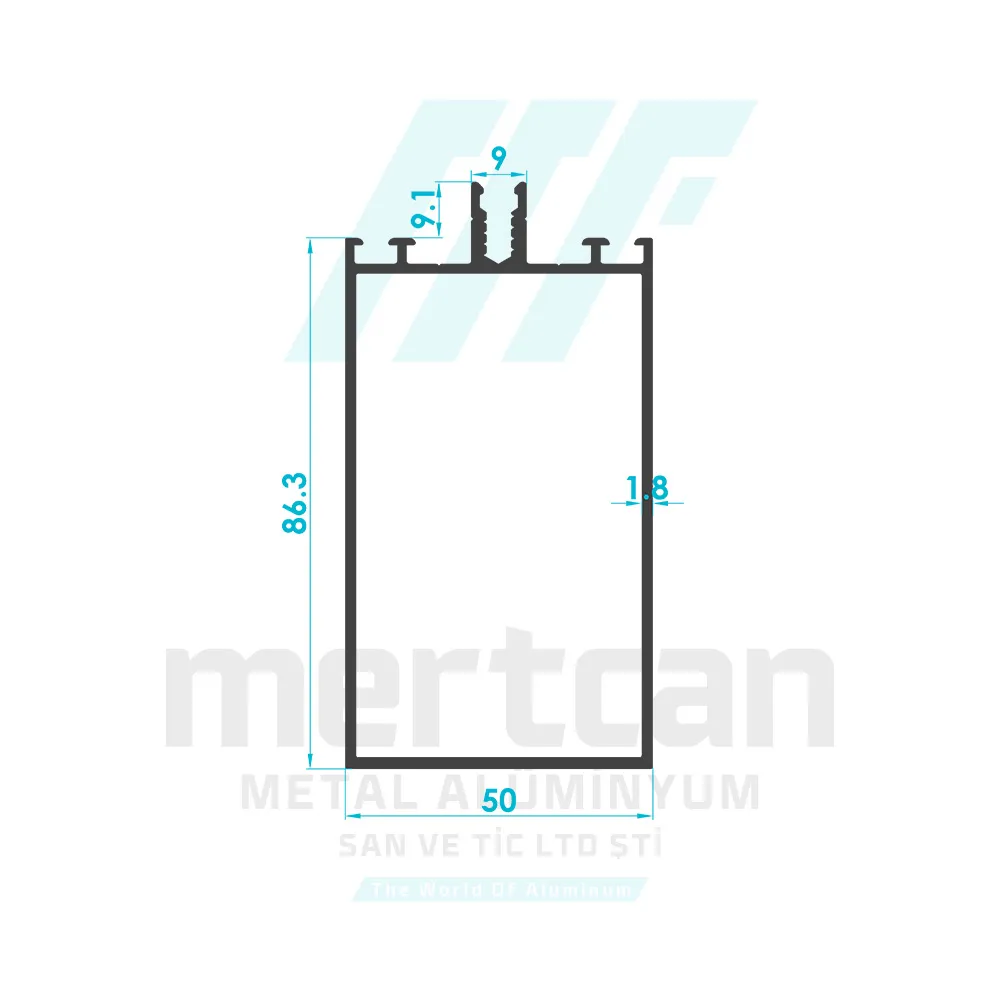

86mm Horizontal Facade Profile (Short Beak)

Product Code: 3158

Weight: 1.495 kg/m

Designed to carry heavy glass loads, it is a strong short beak profile weighing 1.5 kg.

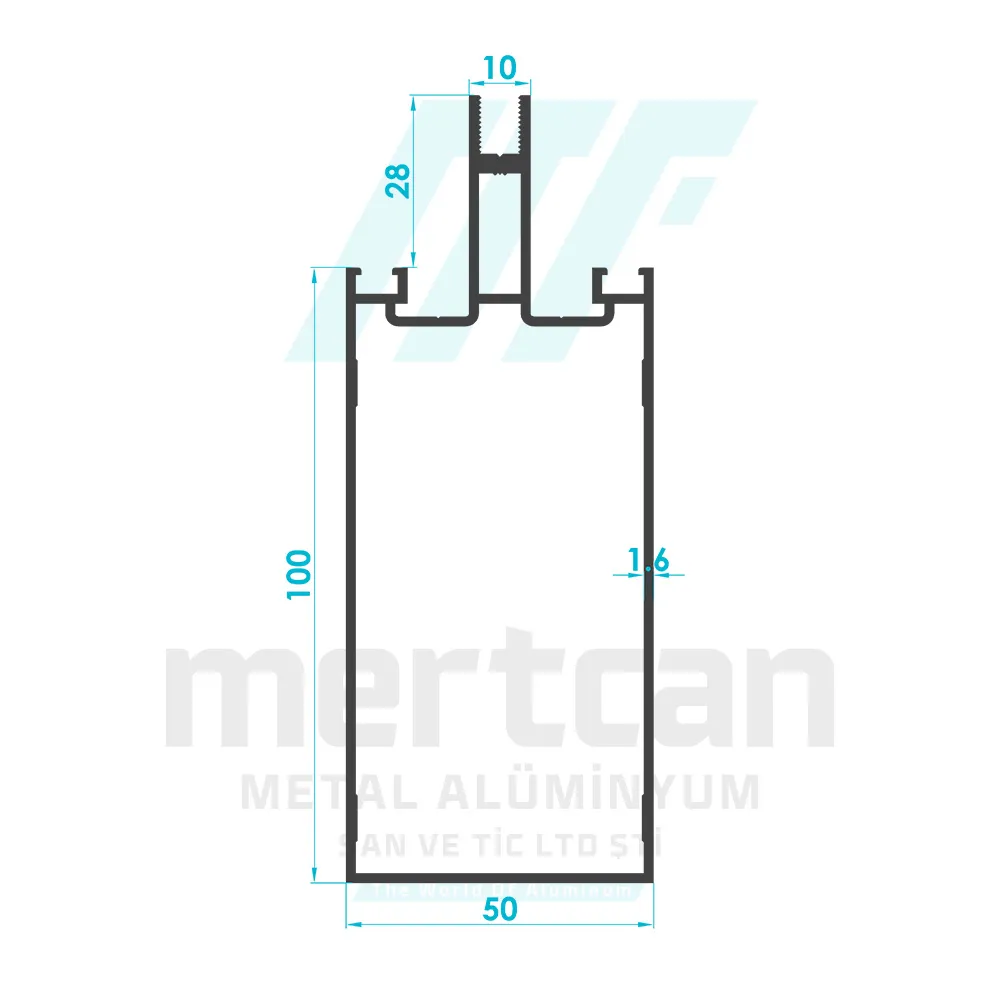

100mm Horizontal Facade Profile (Long Beak)

Product Code: 3315

Weight: 1.766 kg/m

Used in wide-span facades, it is a 100mm horizontal rail with high moment of inertia weighing 1.76 kg.

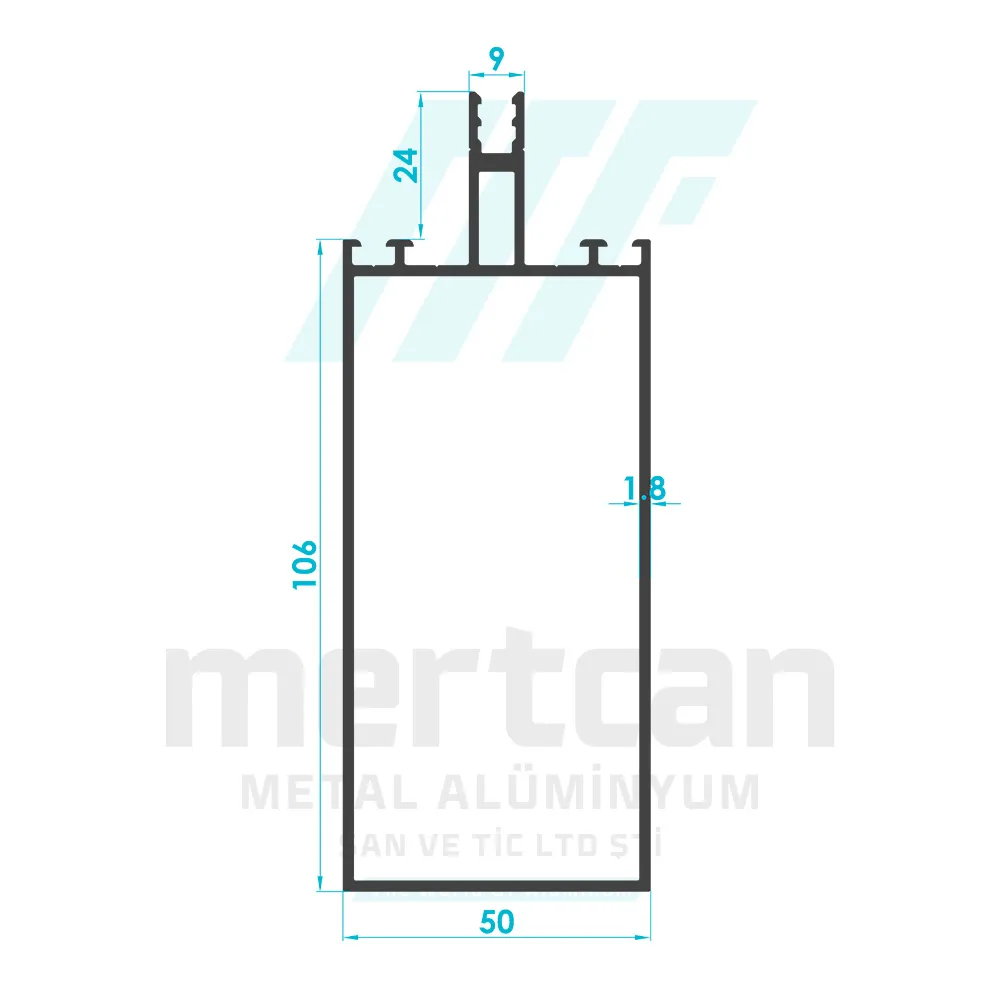

106mm Horizontal Facade Profile (Long Beak)

Product Code: 3105

Weight: 1.678 kg/m

Providing extra static strength with its 106mm depth, it is a special design facade profile with long beak.

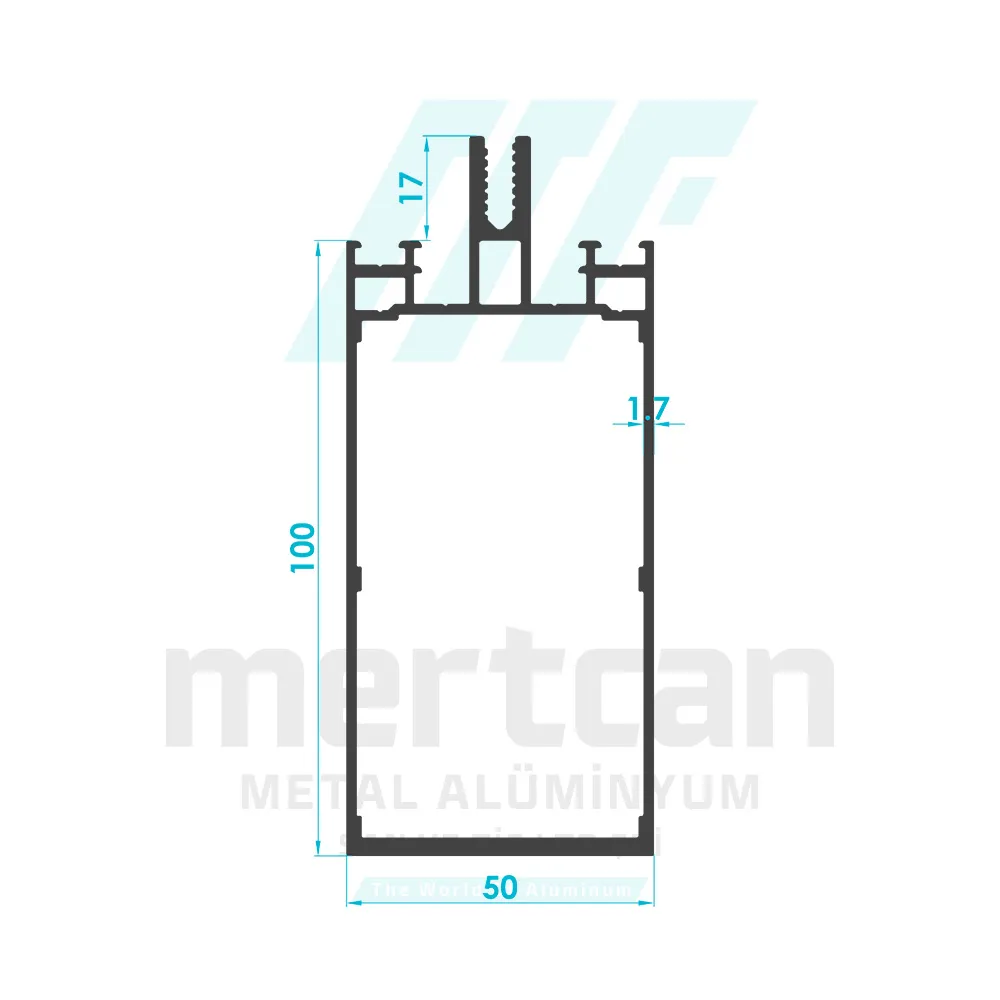

100mm Vertical Facade Profile (Long Beak)

Product Code: 3770

Weight: 2.124 kg/m

Being the main carrier of the facade system, it is a very strong 100mm vertical mullion profile weighing 2.1 kg.

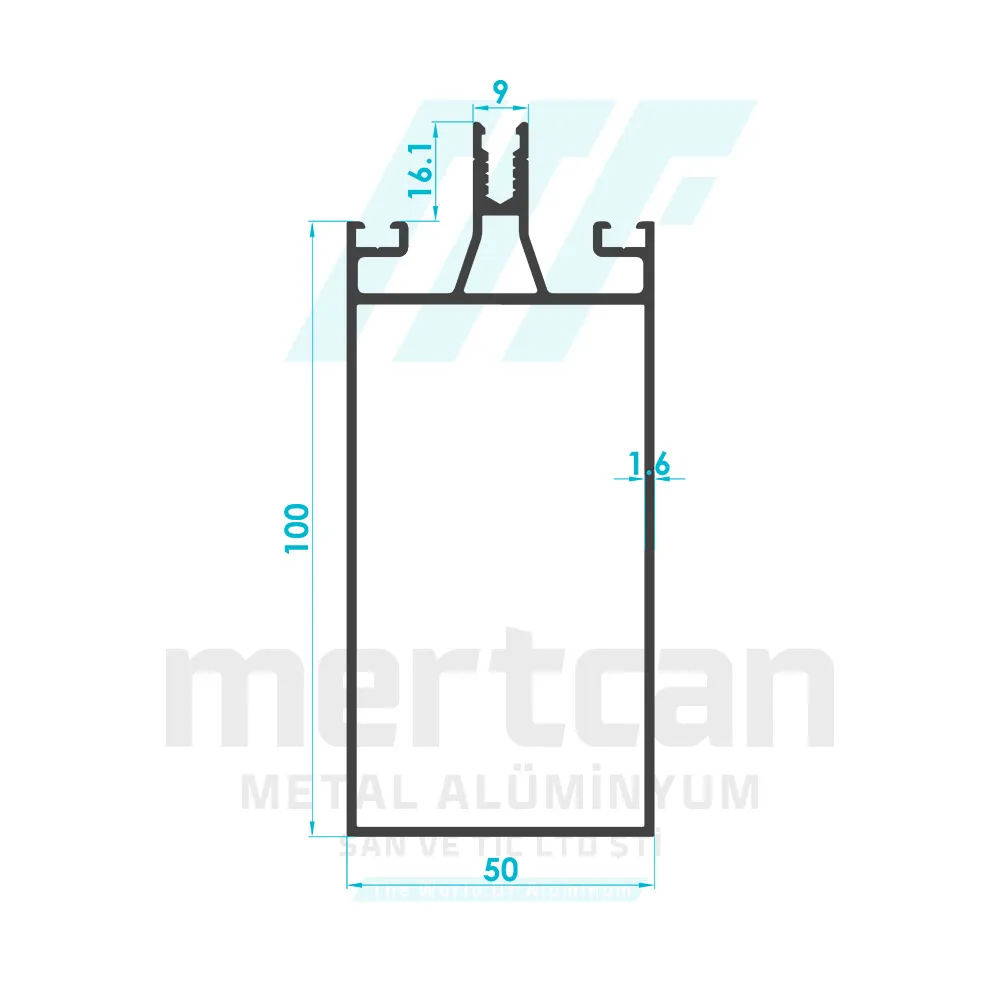

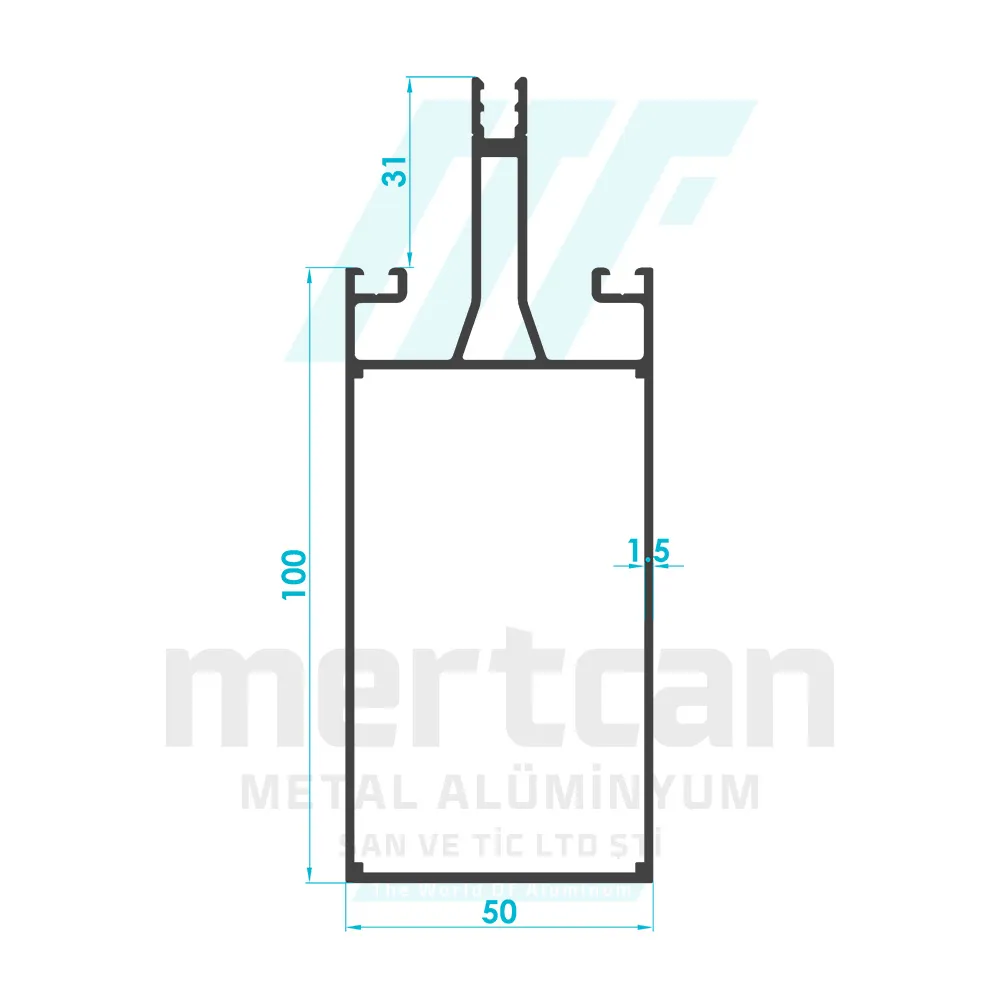

100mm Vertical Facade Profile with Condensate Channel (Long Beak)

Product Code: 3664

Weight: 1.738 kg/m

It is a functional vertical profile weighing 1.7 kg, featuring a special channel inside to drain condensation water.

100mm Vertical Facade Profile with Condensate Channel (Long Beak)

Product Code: 3118

Weight: 1.778 kg/m

It is a vertical carrier weighing 1.78 kg maximizing water insulation with its reinforced condensate channel structure.

100mm Vertical Facade Profile with Condensate Channel (Long Beak)

Product Code: 3407

Weight: 1.701 kg/m

Offering an economical and performant solution, it is a standard condensate channel profile weighing 1.7 kg.

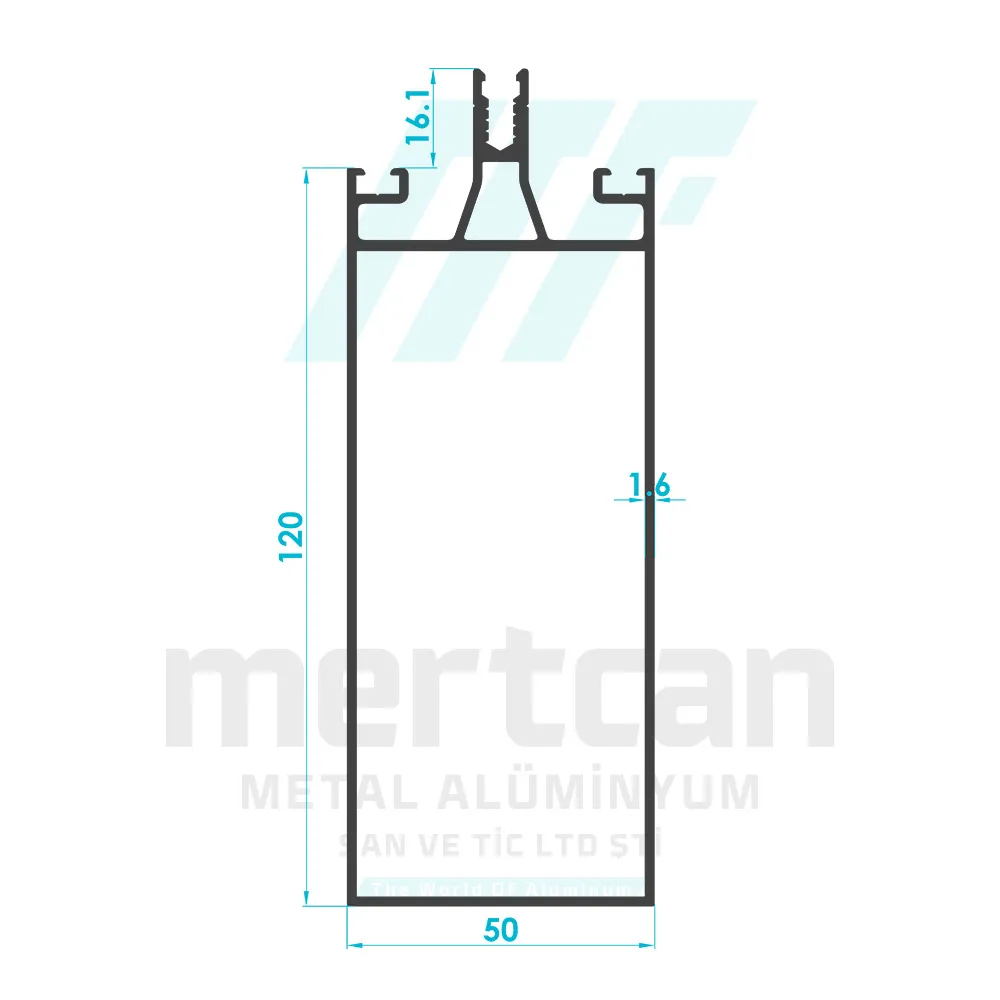

120mm Vertical Facade Profile with Condensate Channel (Long Beak)

Product Code: 3665

Weight: 1.909 kg/m

It is a main vertical profile 120mm deep and weighing 1.9 kg to withstand wind load in high-rise buildings.

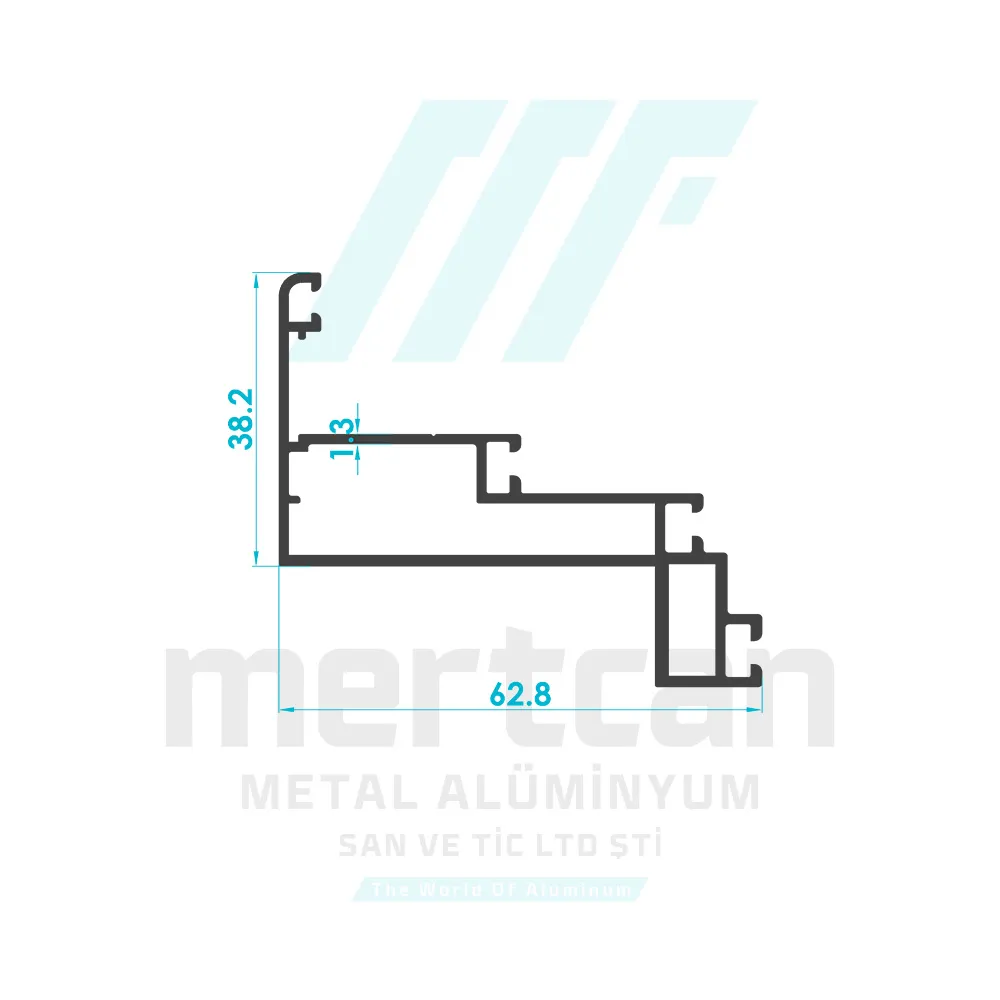

Facade Frame Profile

Product Code: 3616

Weight: 0.901 kg/m

It is a frame profile compatible with insulated systems, used in inward opening sash applications within the facade.

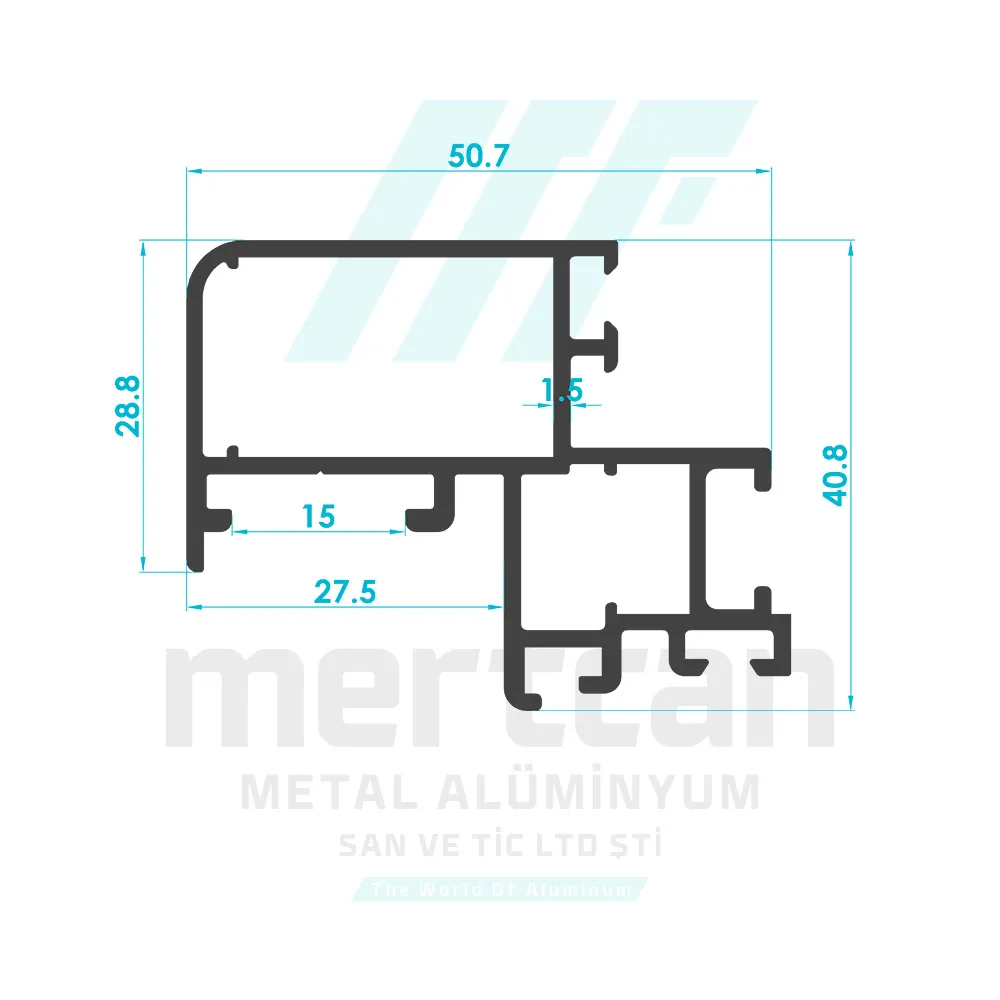

Facade Cassette Profile

Product Code: 3084

Weight: 0.939 kg/m

It is a cassette profile giving a sash appearance, on which glass is bonded in structural silicone facades.

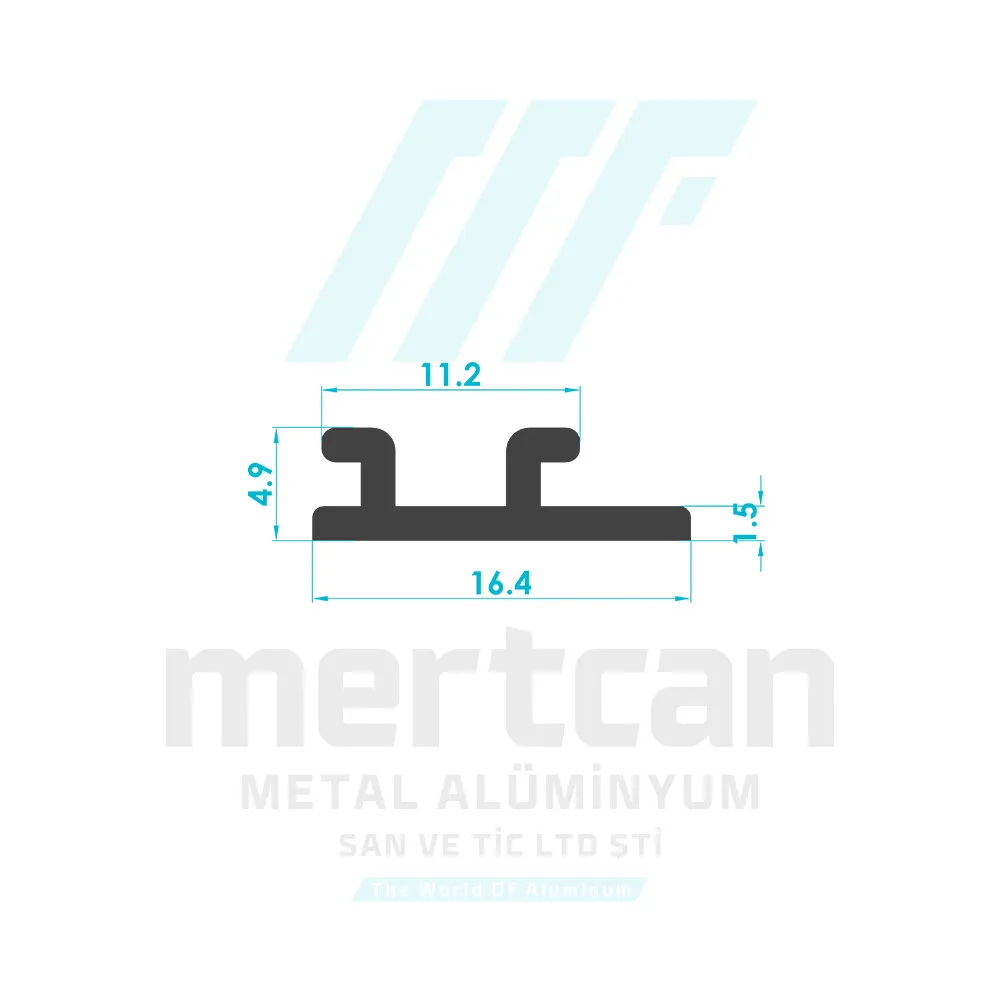

Facade Rod Profile

Product Code: 3083

Weight: 0.106 kg/m

It is a mechanical connection rod used to fix facade cassettes to the main framework.

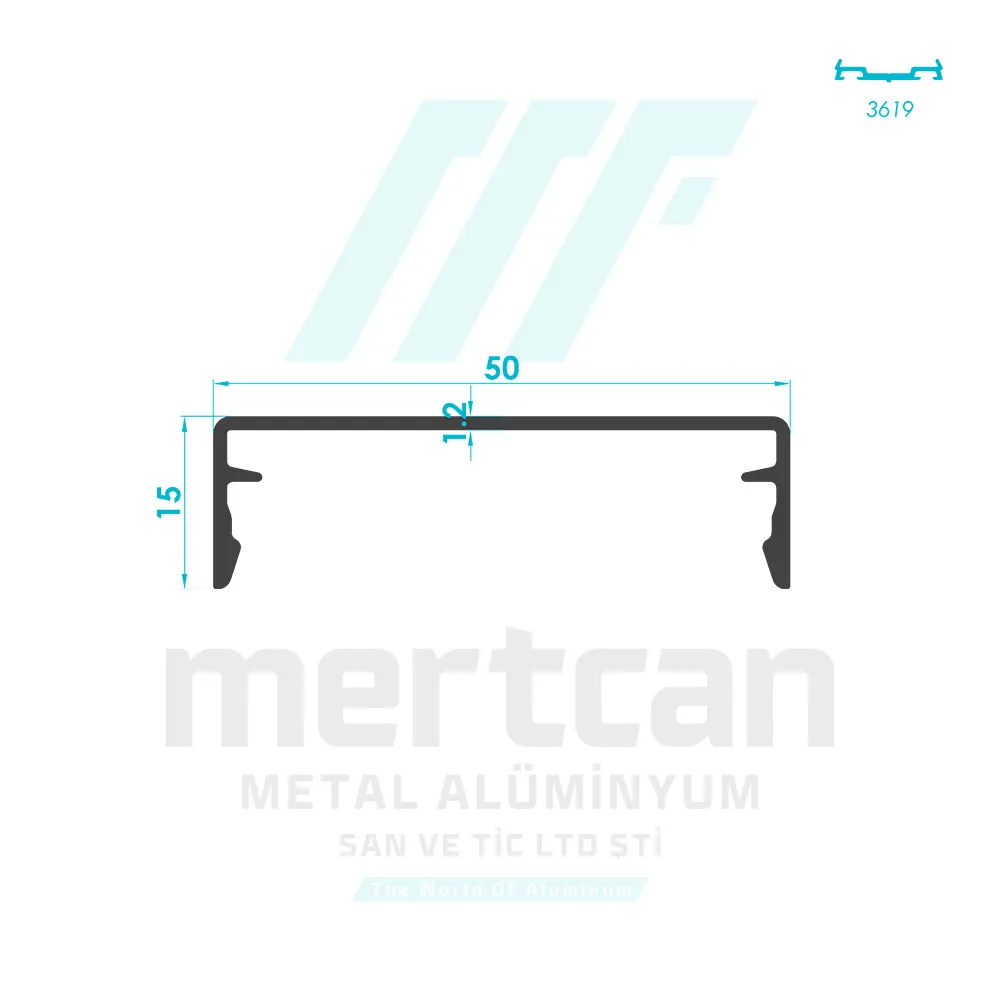

15mm Facade Cover Profile

Product Code: 3669

Weight: 0.289 kg/m

Used for slim-line facade designs, it is a decorative cover profile 15mm wide.

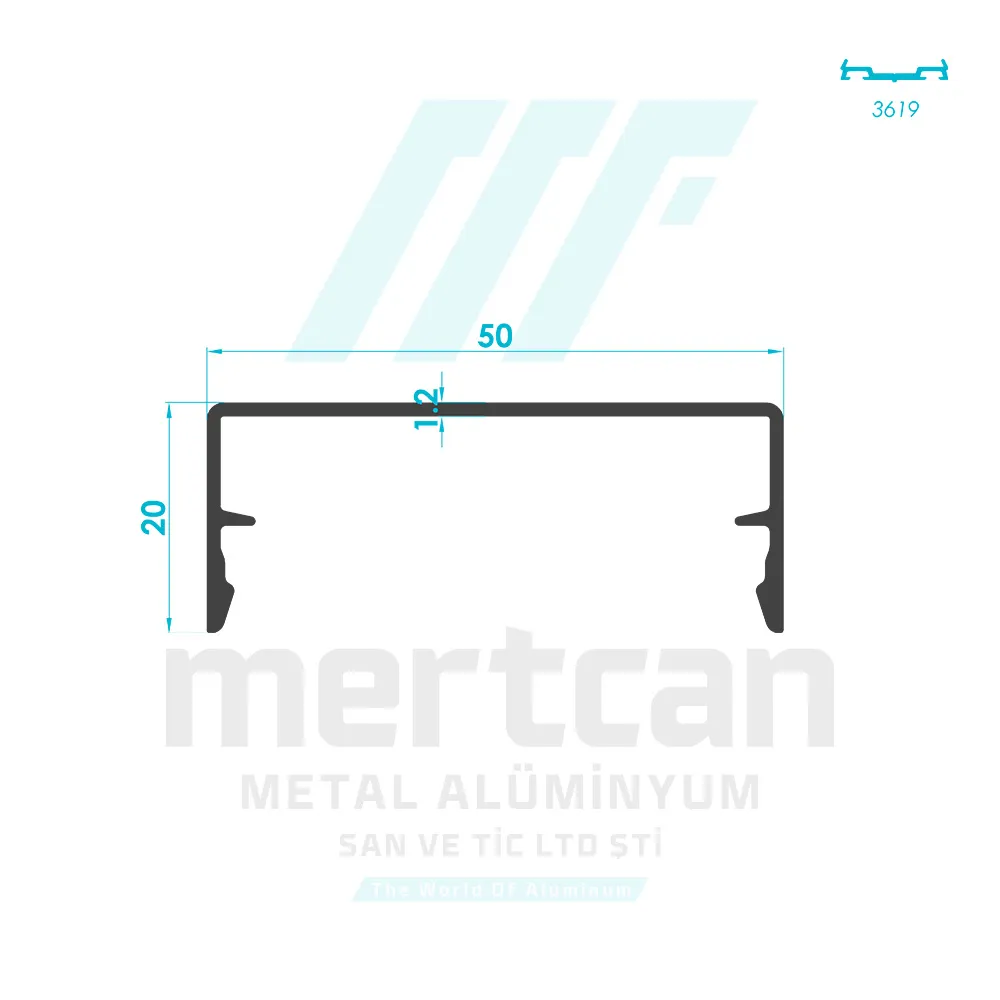

20mm Facade Cover Profile

Product Code: 3618

Weight: 0.321 kg/m

It is a 20mm wide cover highlighting vertical and horizontal lines in standard capped facades.

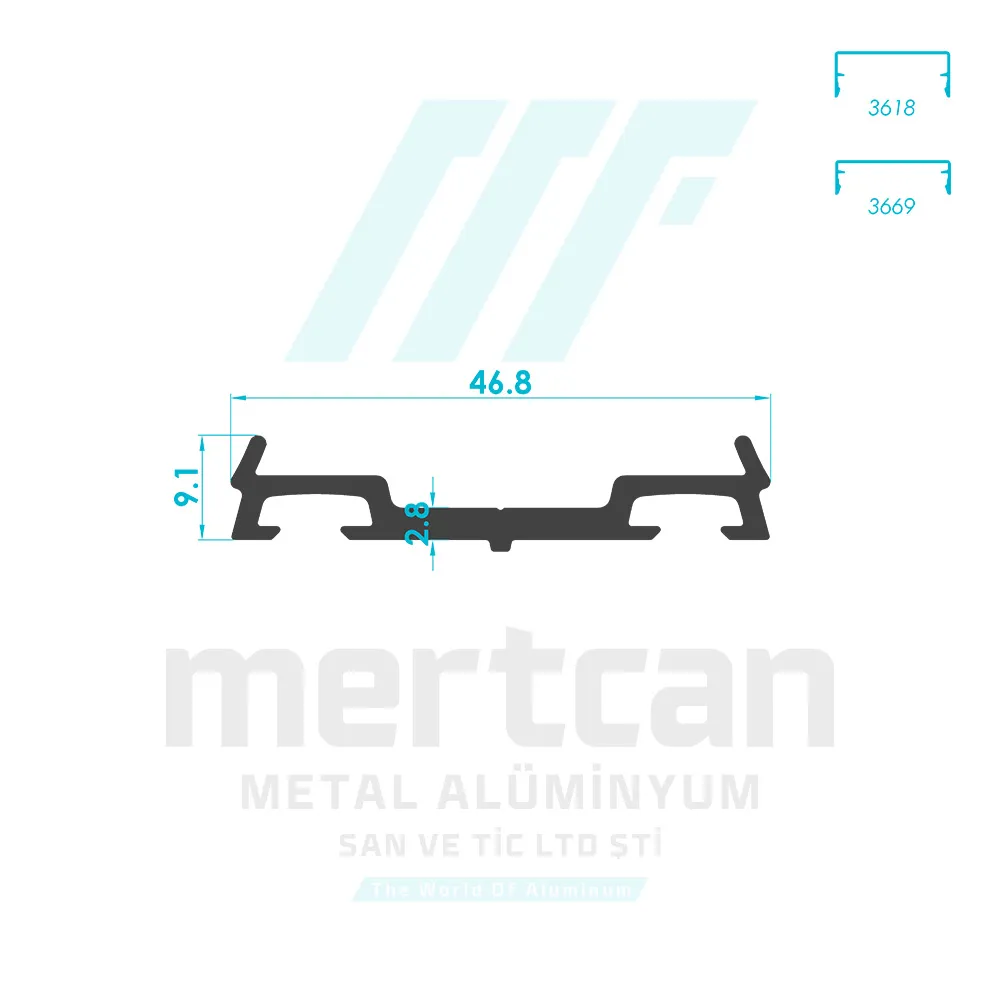

Facade Pressure Plate Profile

Product Code: 3619

Weight: 0.371 kg/m

It is the main pressure element providing sealing and security by clamping glasses to facade profiles.

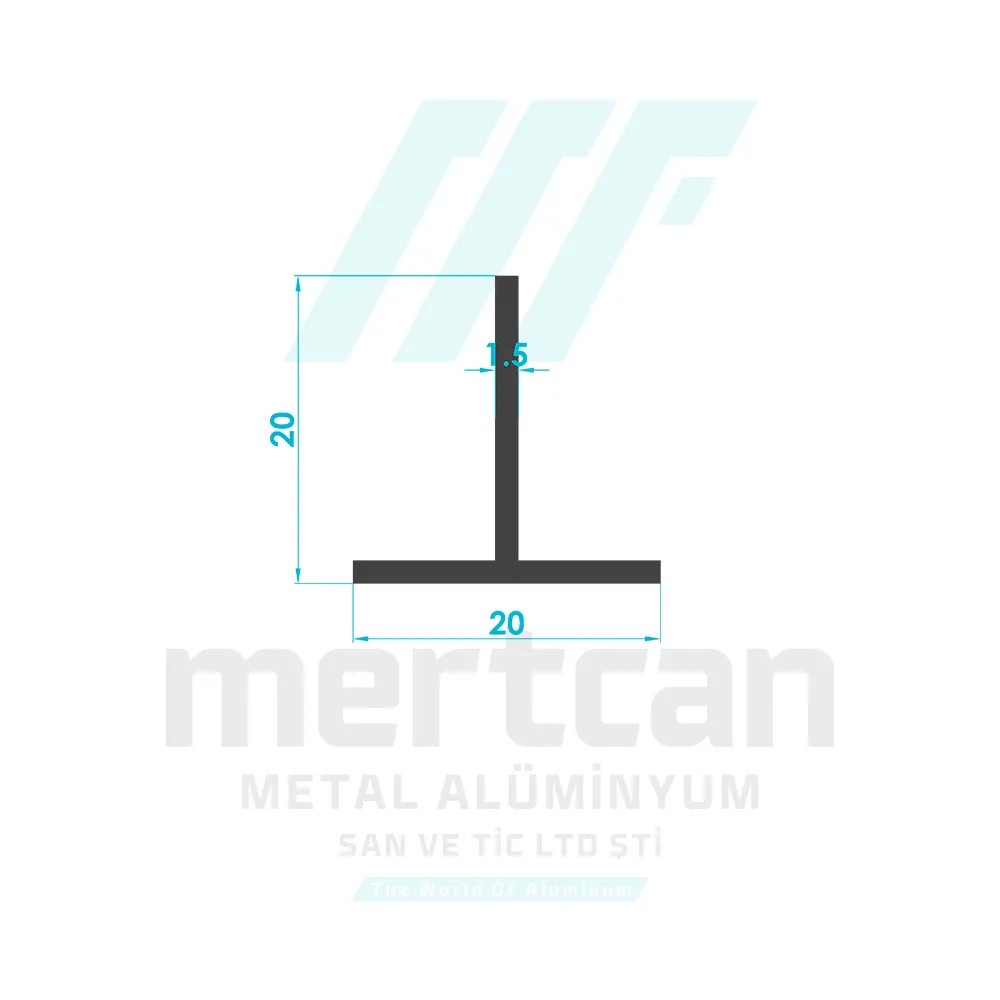

20x20 T Profile

Product Code: 3653

Weight: 0.157 kg/m

Used in facade details or finishes, it is a light aluminum T profile weighing 0.16 kg.

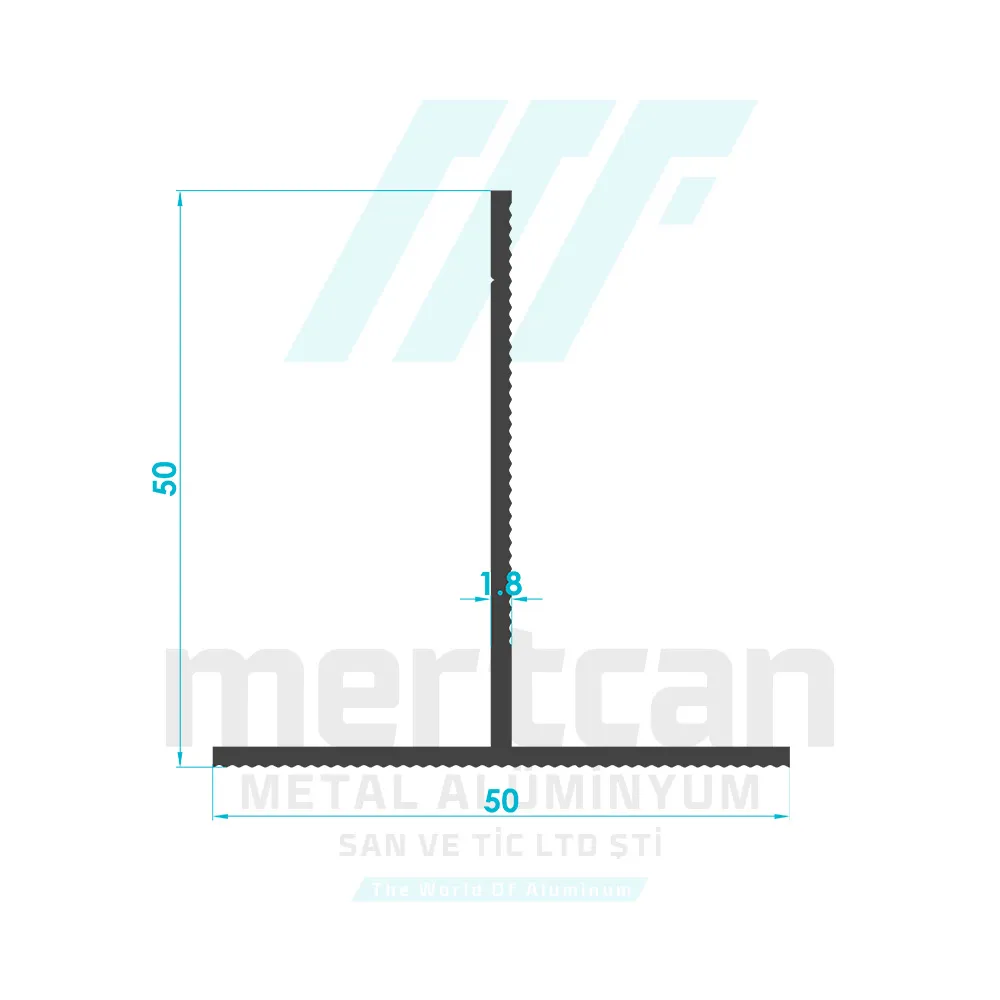

50x50 Serrated T Profile

Product Code: 3816

Weight: 0.452 kg/m

It is a T profile ensuring better adhesion of adhesive or filling material thanks to the serrations on its surface.

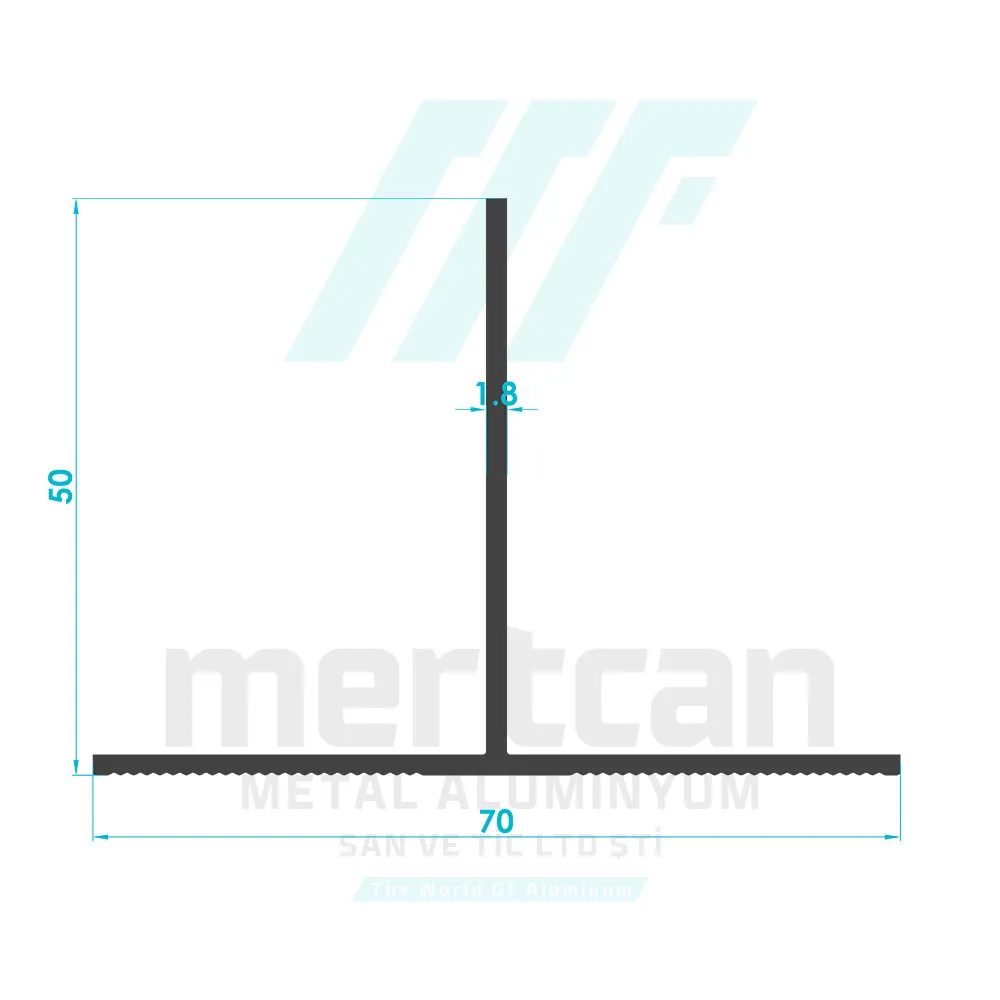

50x70 Serrated T Profile

Product Code: 3815

Weight: 0.56 kg/m

Used as adjustment and adhesion surface in facade anchors, it is a serrated profile in 50x70 size.

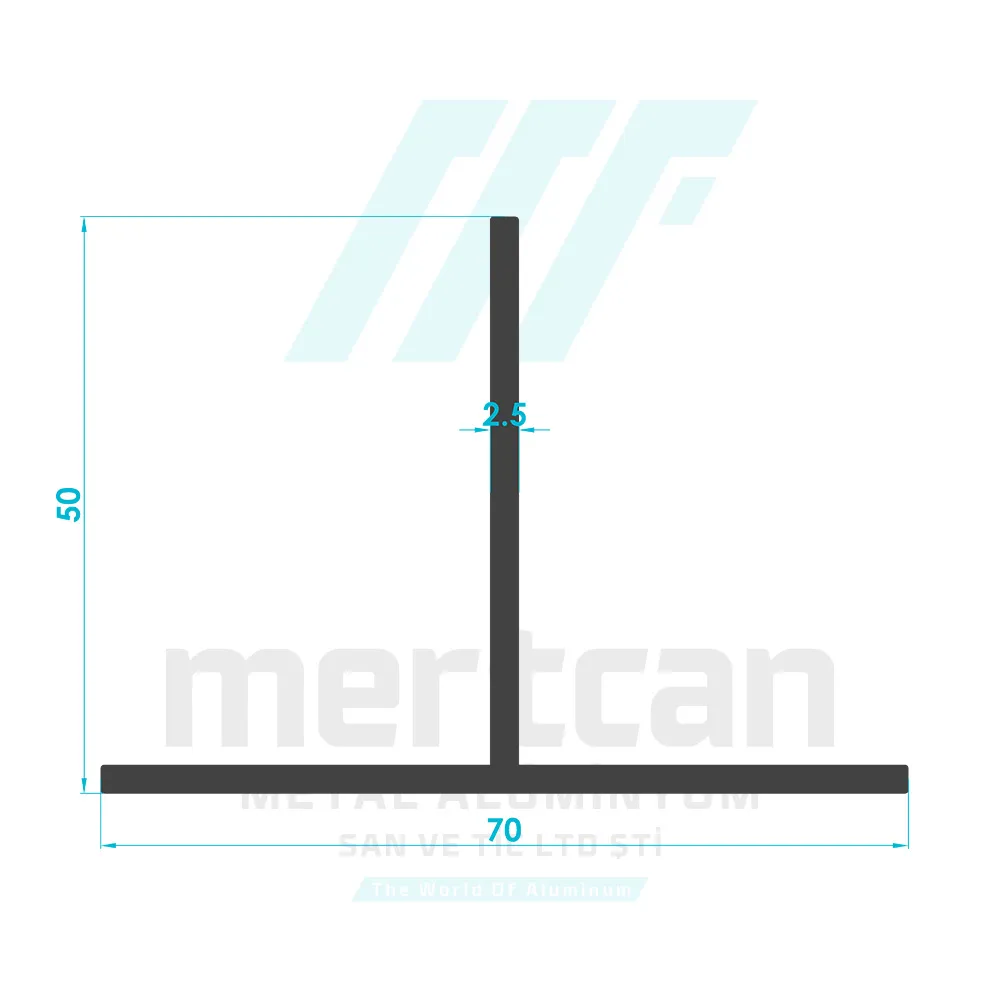

50x70 T Profile

Product Code: 1772

Weight: 0.797 kg/m

Used as intermediate rail in facade constructions, it is a flat-surfaced T profile weighing 0.8 kg.

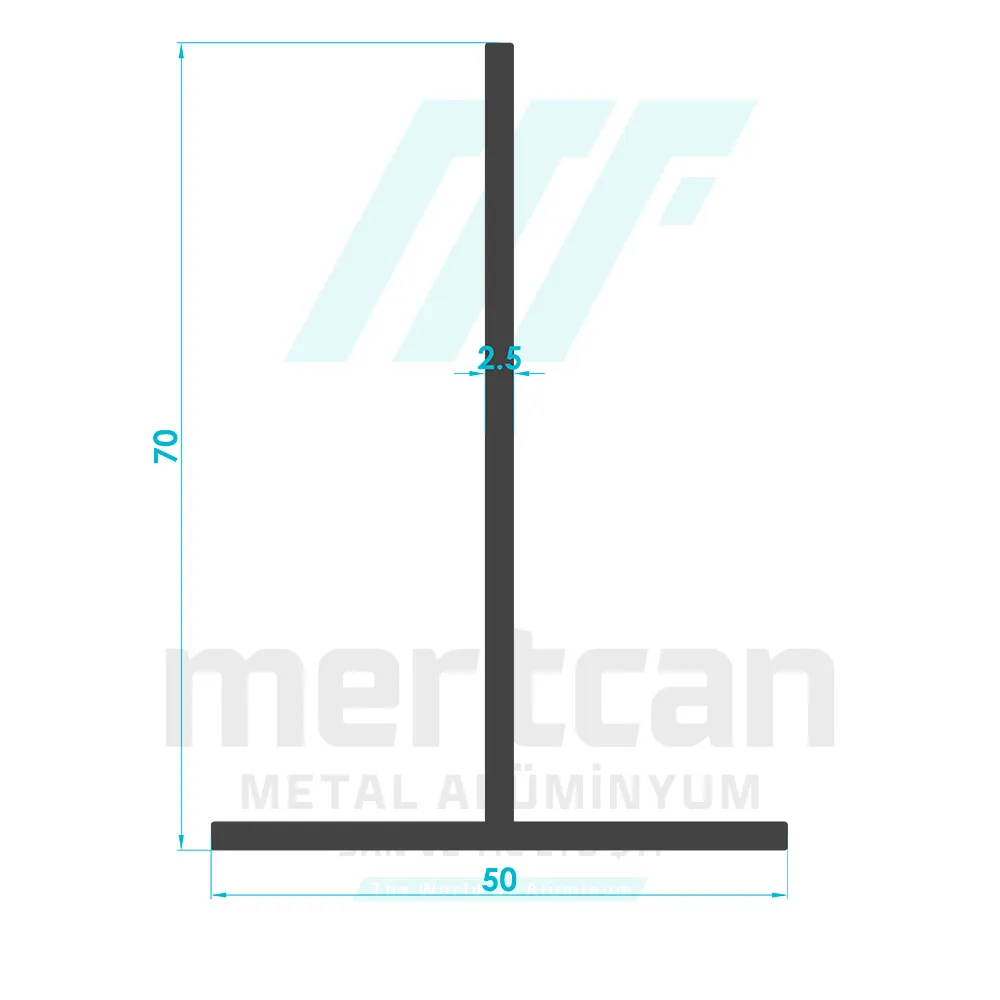

70x50 T Profile

Product Code: 1773

Weight: 0.797 kg/m

Offering alternative dimensions for different installation directions, it is an aluminum T profile for structural support purposes.

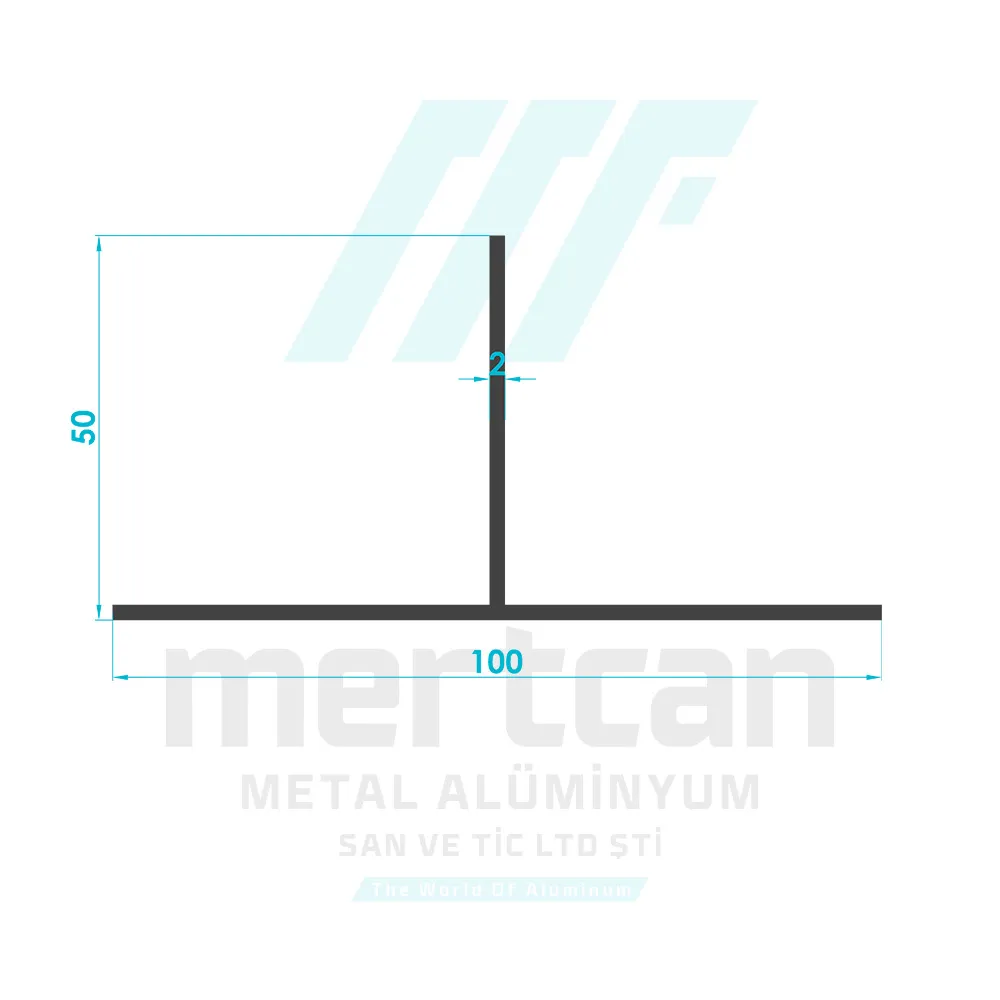

50x100 T Profile

Product Code: 3090

Weight: 0.802 kg/m

It is a large-sized T profile providing flexibility at connection points with its wide surface area (100mm).

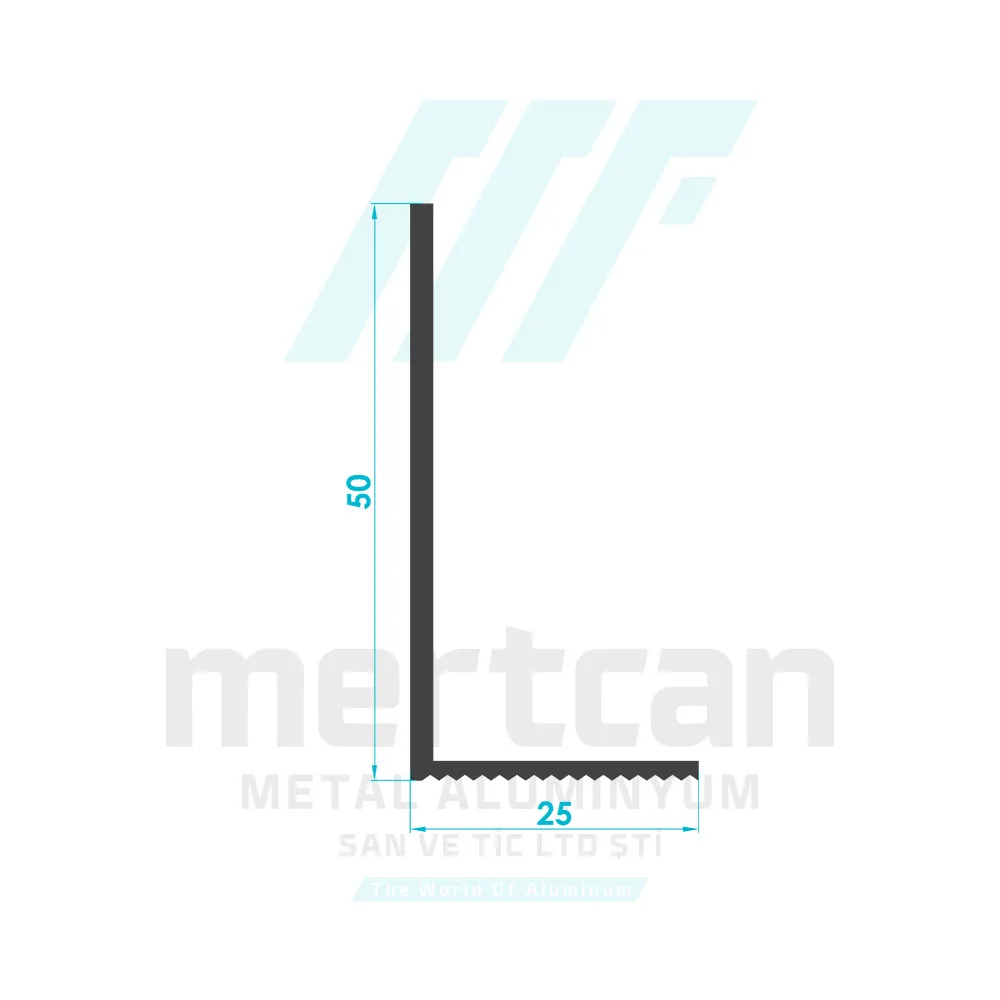

50x25 Serrated L Profile

Product Code: 3814

Weight: 0.361 kg/m

It is an L profile with a serrated surface increasing friction in corner joints and anchor details.

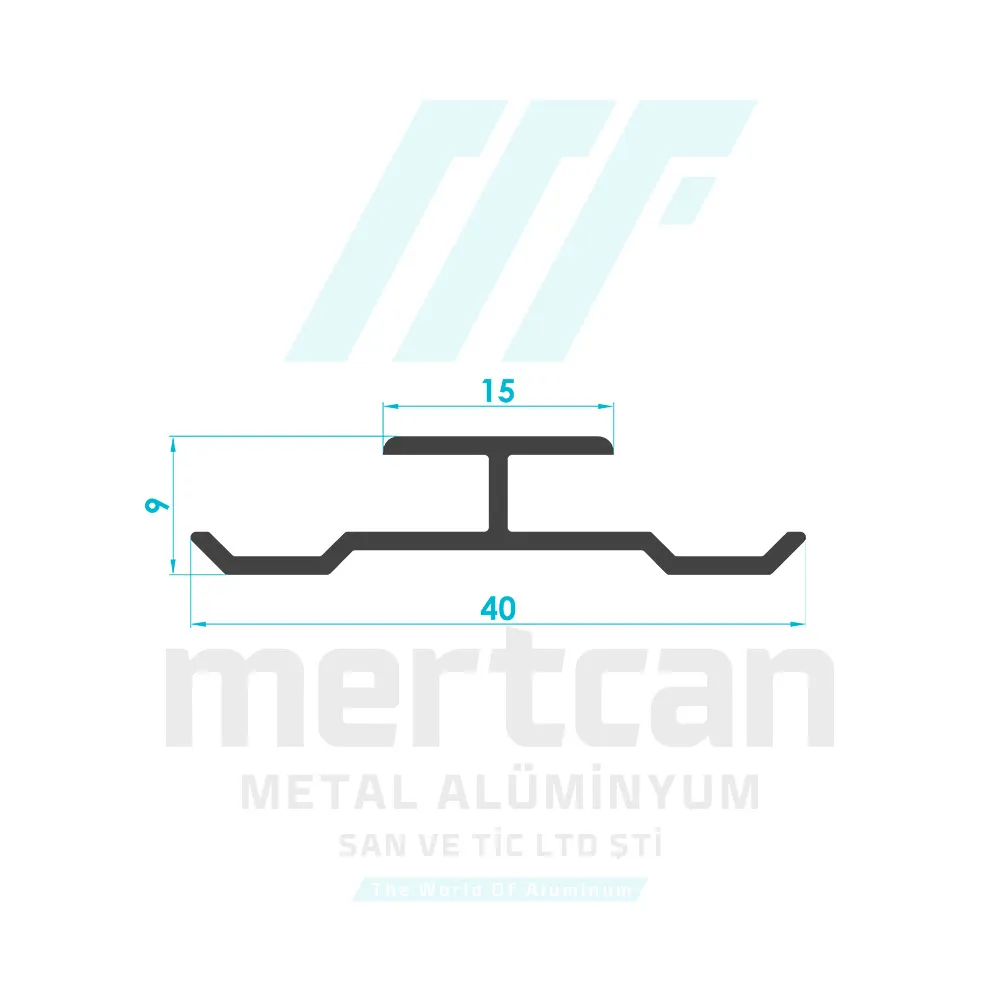

Composite Facade Unequal H Profile (5mm)

Product Code: 3774

Weight: 0.235 kg/m

Used in the junction of 4mm or 5mm composite panels, it is an intermediate connection profile providing ease of installation.

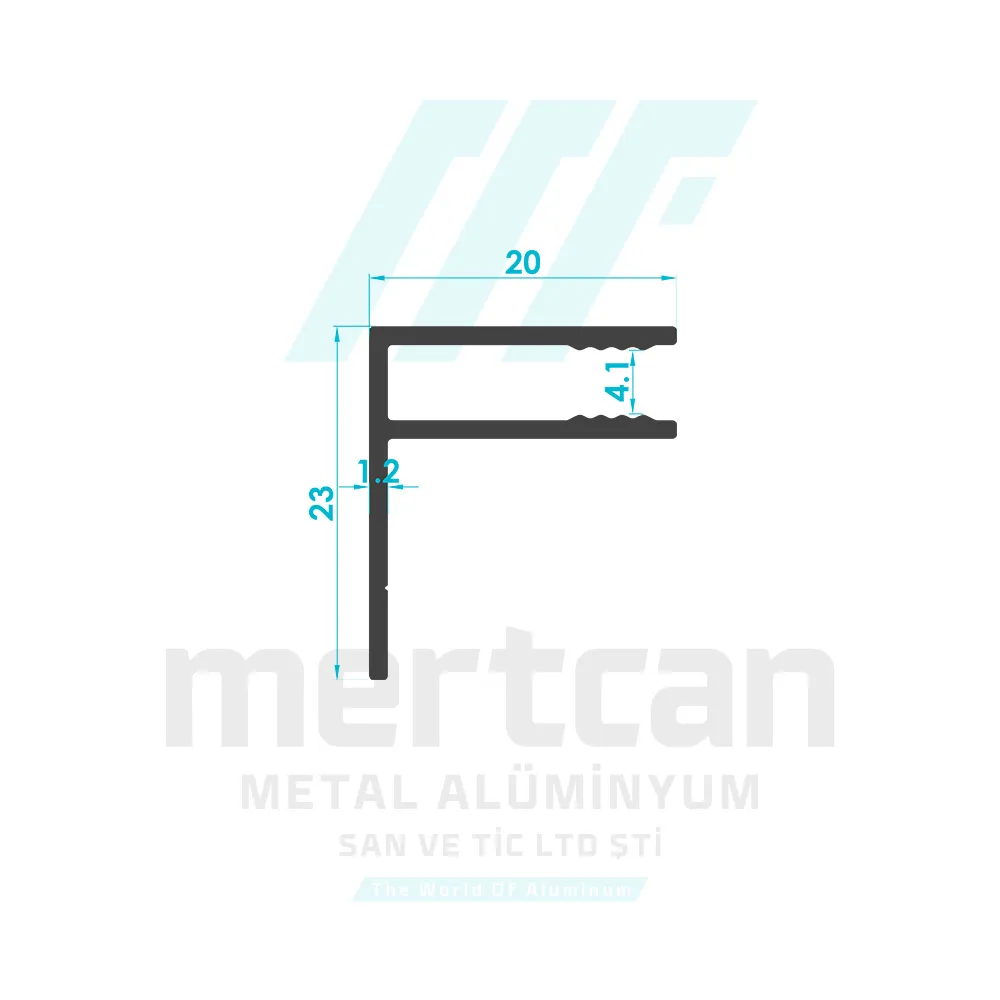

Composite Facade F Profile (4mm)

Product Code: 3776

Weight: 0.22 kg/m

It is an F-section profile used at the finishing points or edge turns of composite sheets.

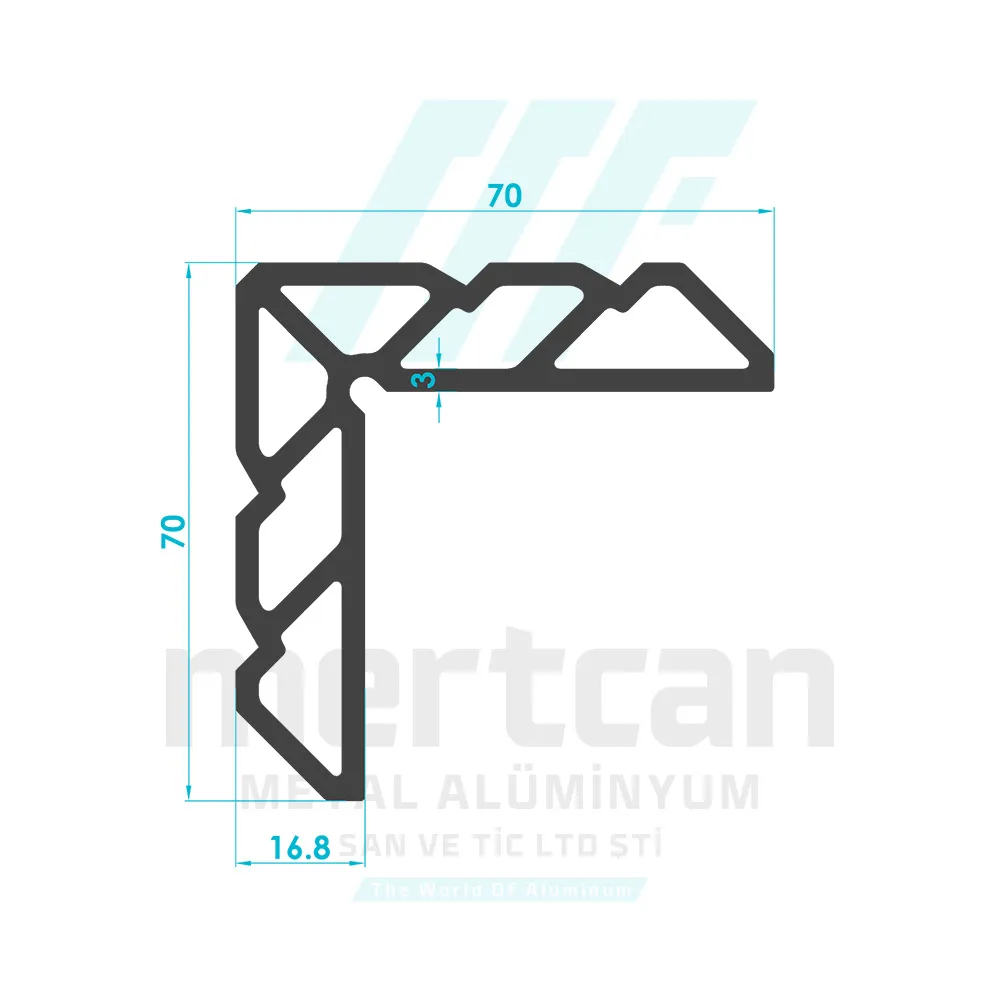

Facade Cassette Corner Cleat Profile

Product Code: 3620

Weight: 2.683 kg/m

It is a press cleat profile weighing 2.7 kg used to connect facade cassettes at 45 degrees.

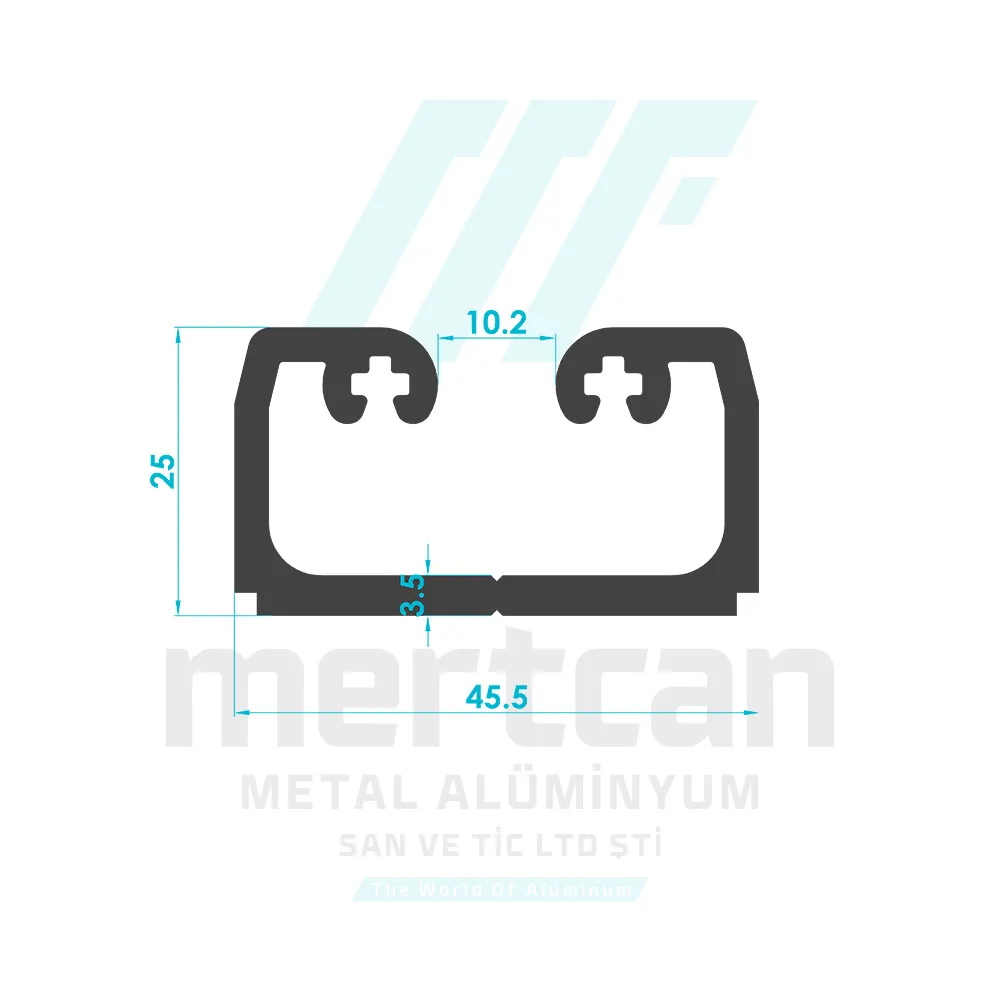

Facade Horizontal Connection Cleat Profile

Product Code: 3773

Weight: 1.139 kg/m

It is a connection element connecting horizontal facade profiles to vertical profiles, ensuring load transfer.
