C60 Joinery Profiles

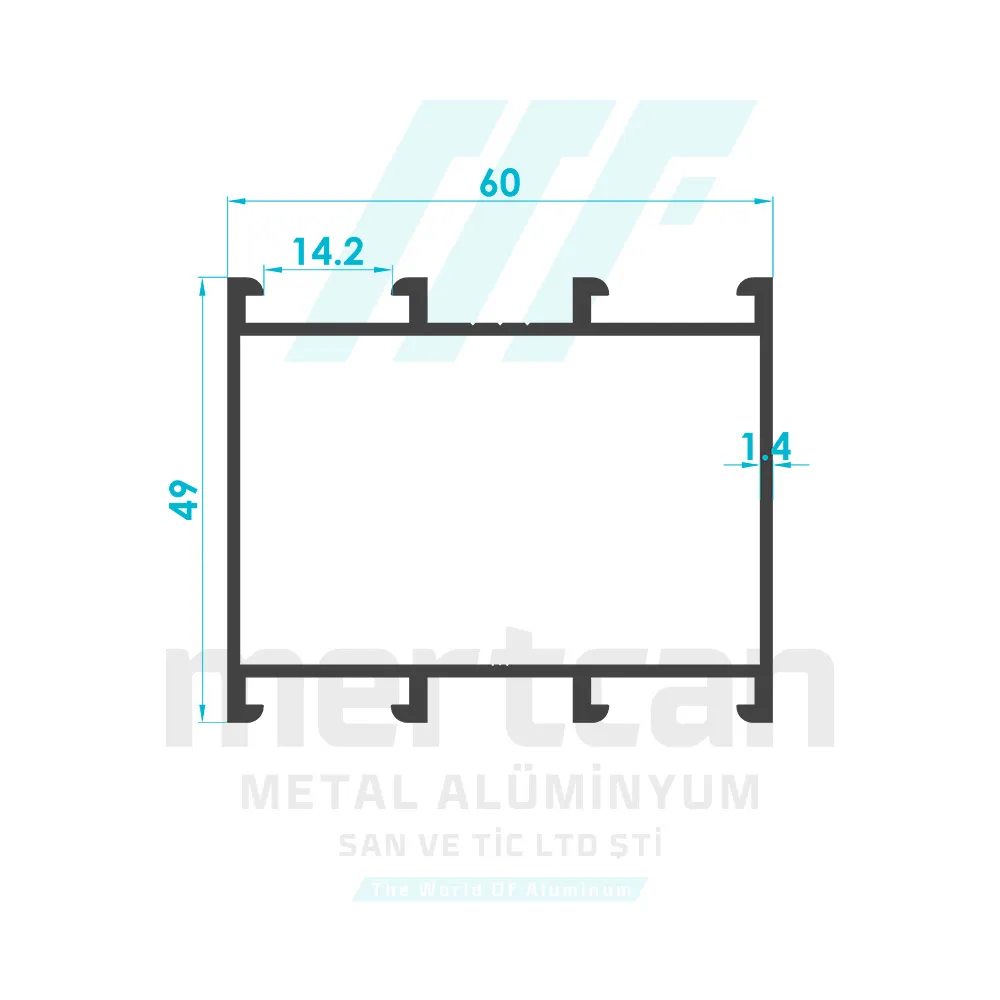

C60 Frame Profile

Product Code: 3303

Weight: 1.018 kg/m

Being the cornerstone of the C60 uninsulated series, it is an economical and durable frame profile weighing 1 kg.

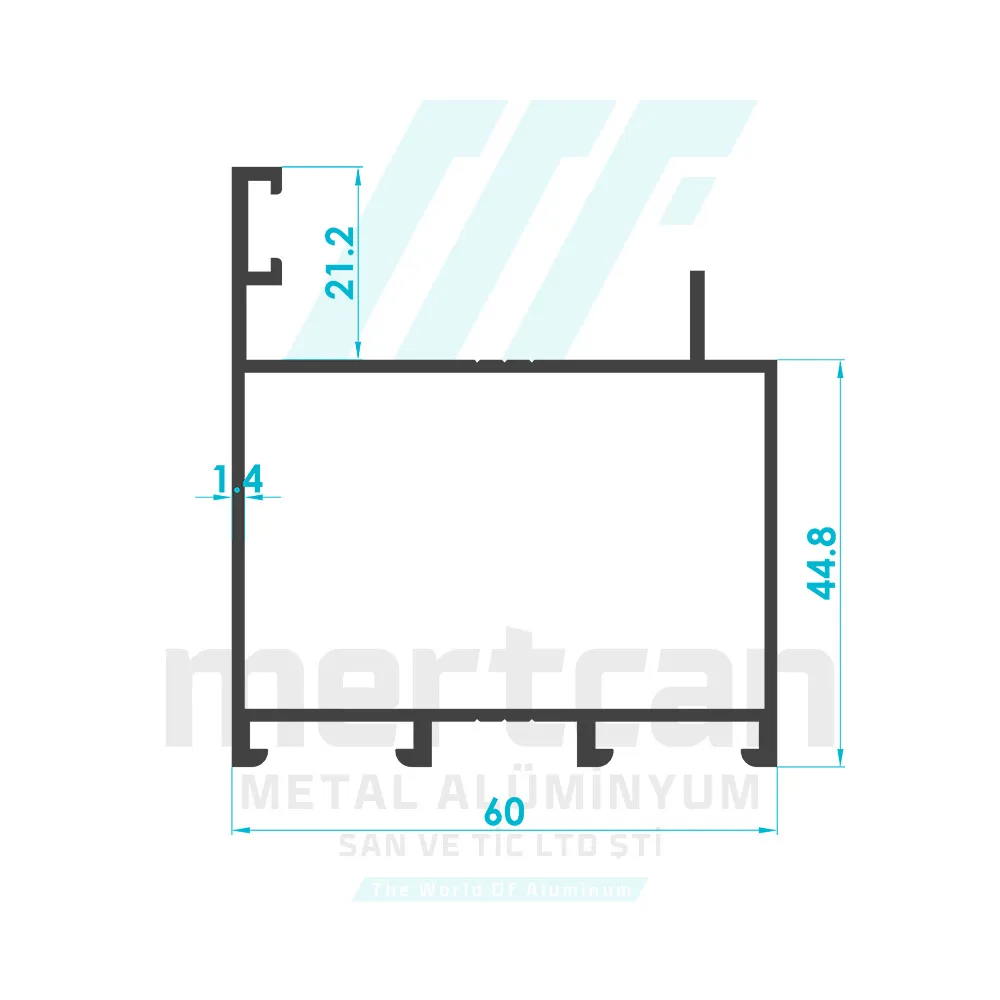

C60 Sash Profile

Product Code: 3304

Weight: 1.058 kg/m

Used in outward and inward opening door-window applications, it is the standard C60 sash providing a large glass area.

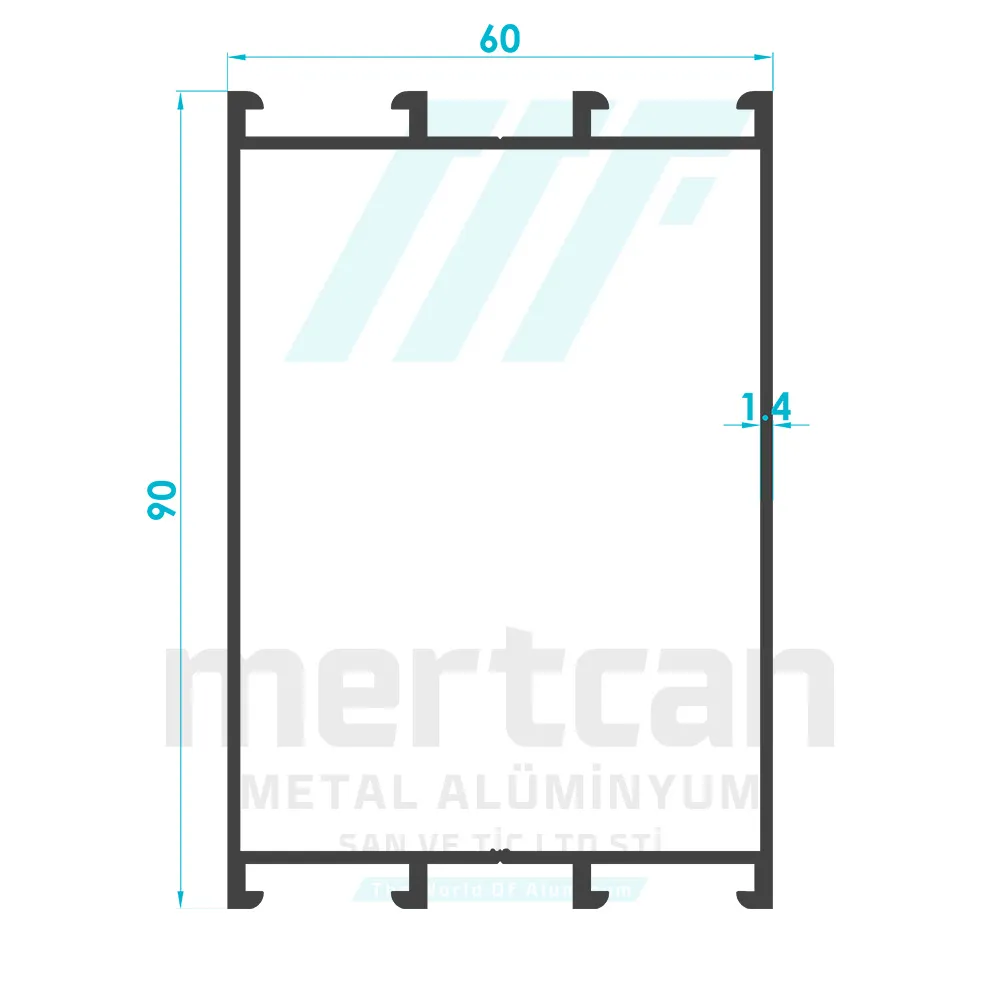

C60 90mm Wide Frame Profile

Product Code: 3305

Weight: 1.329 kg/m

It is a wide frame with architrave covering installation errors on the wall with its 90mm width and offering a more imposing look.

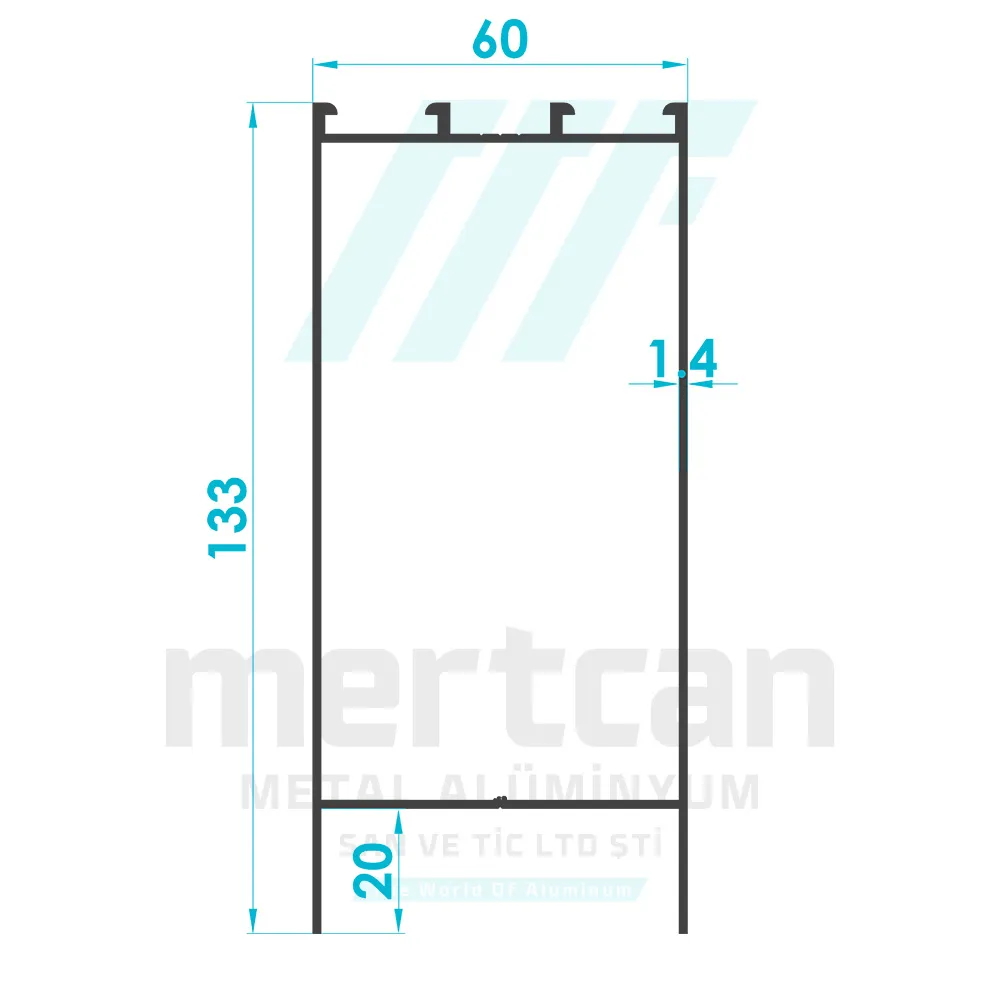

C60 Kick Plate Profile

Product Code: 3306

Weight: 1.551 kg/m

Weighing 1.5 kg, it is a wide-surfaced kick plate profile providing high resistance against impacts under doors.

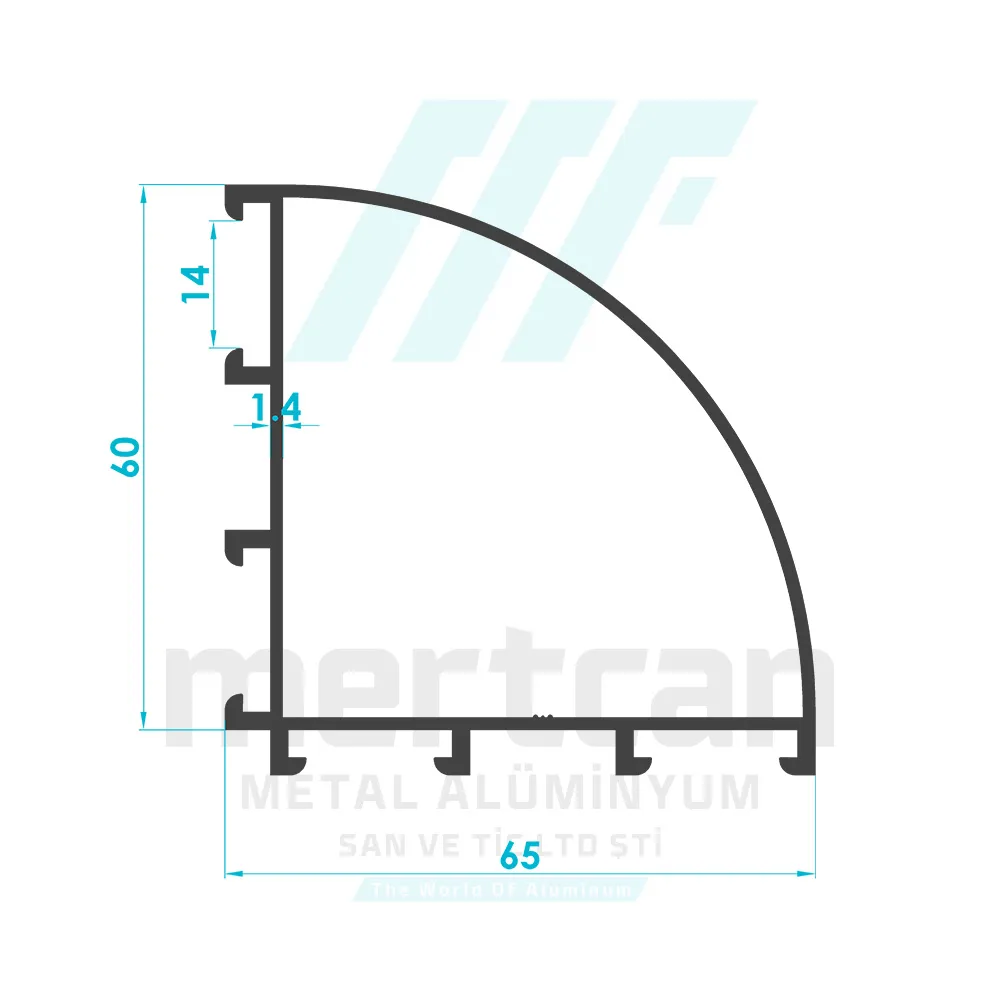

C60 Corner Turn Profile

Product Code: 3307

Weight: 1.091 kg/m

It is a corner profile with sealing details ensuring 90-degree turns in C60 showcase or partition systems.

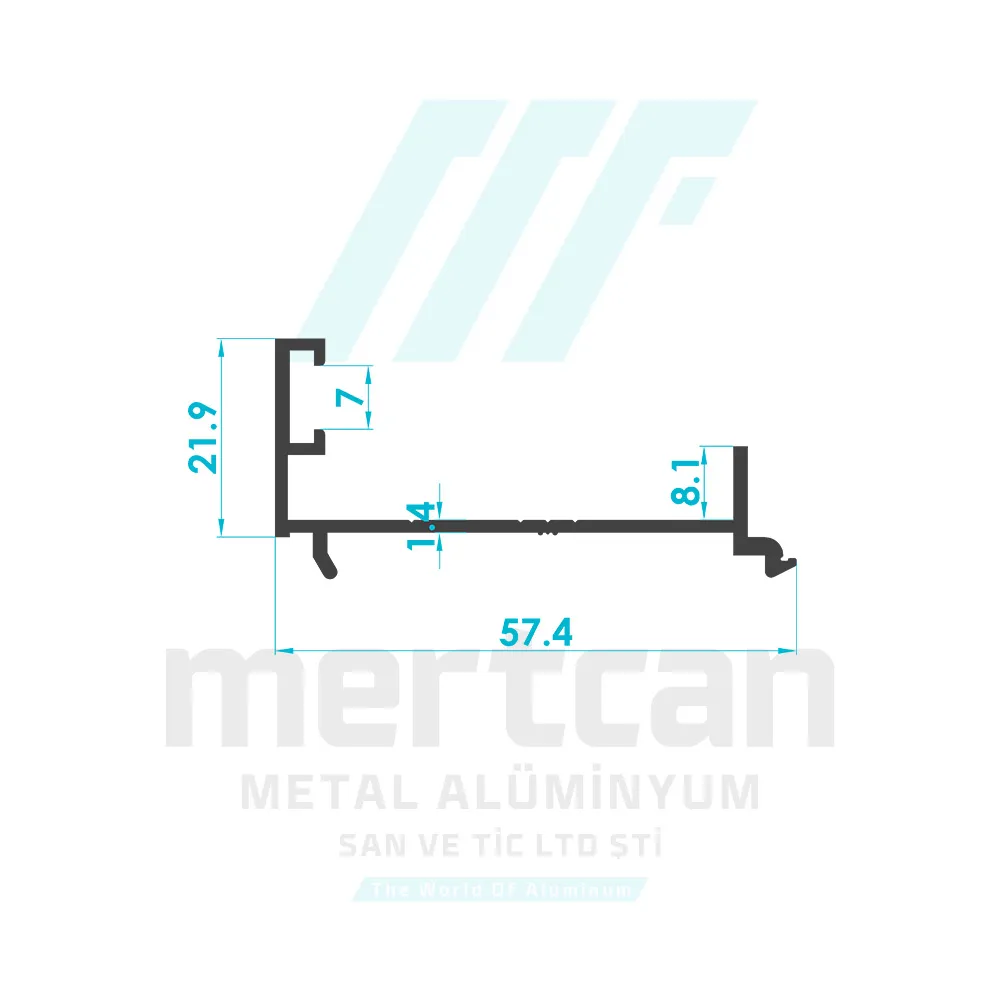

C60 Sash Adapter Profile

Product Code: 3312

Weight: 0.423 kg/m

It is a sealing adapter ensuring the overlap of sashes in double-sash doors or windows.

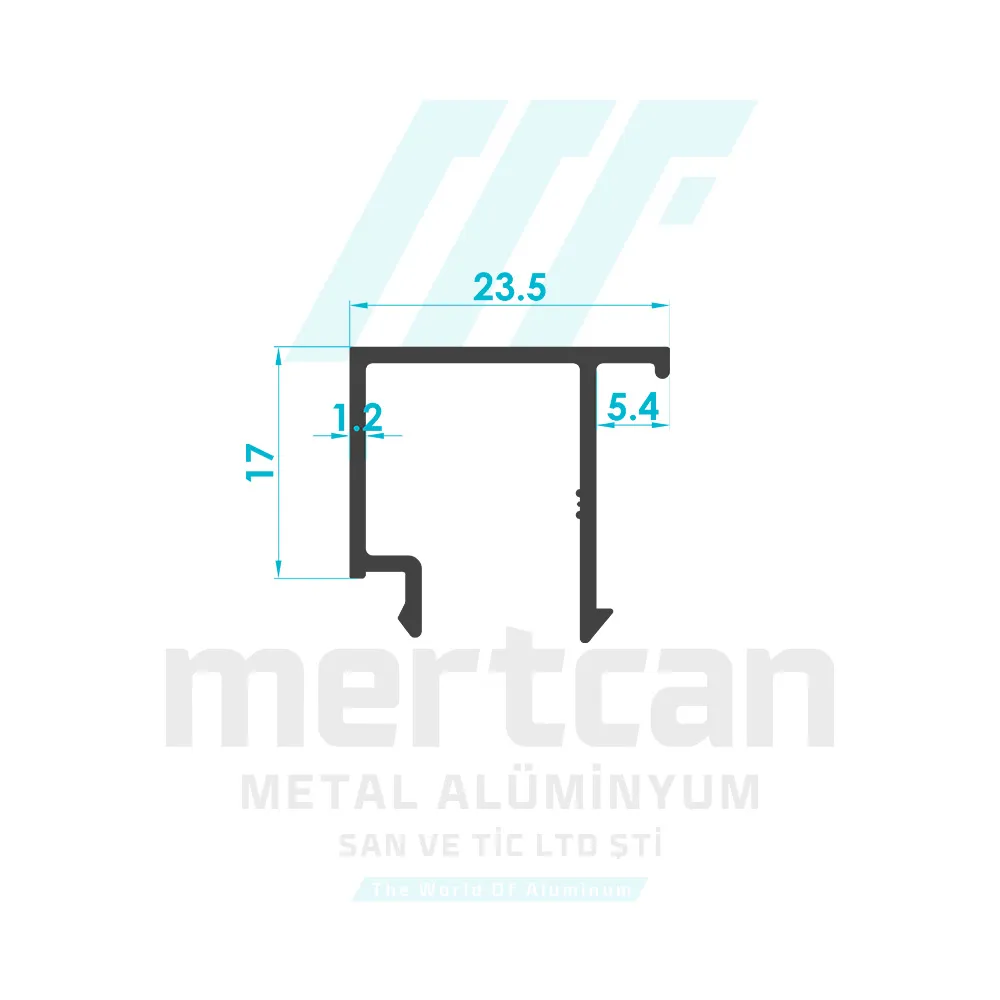

C60 Single Glazing Bead

Product Code: 3308

Weight: 0.231 kg/m

It is a standard bead with gasket slots enabling single glass (4-6mm) installation in C60 profiles.

C60 Double Glazing Bead

Product Code: 3820

Weight: 0.247 kg/m

It is a glass holding profile used in C60 joinery where double glazing (20-24mm) is applied for thermal insulation.

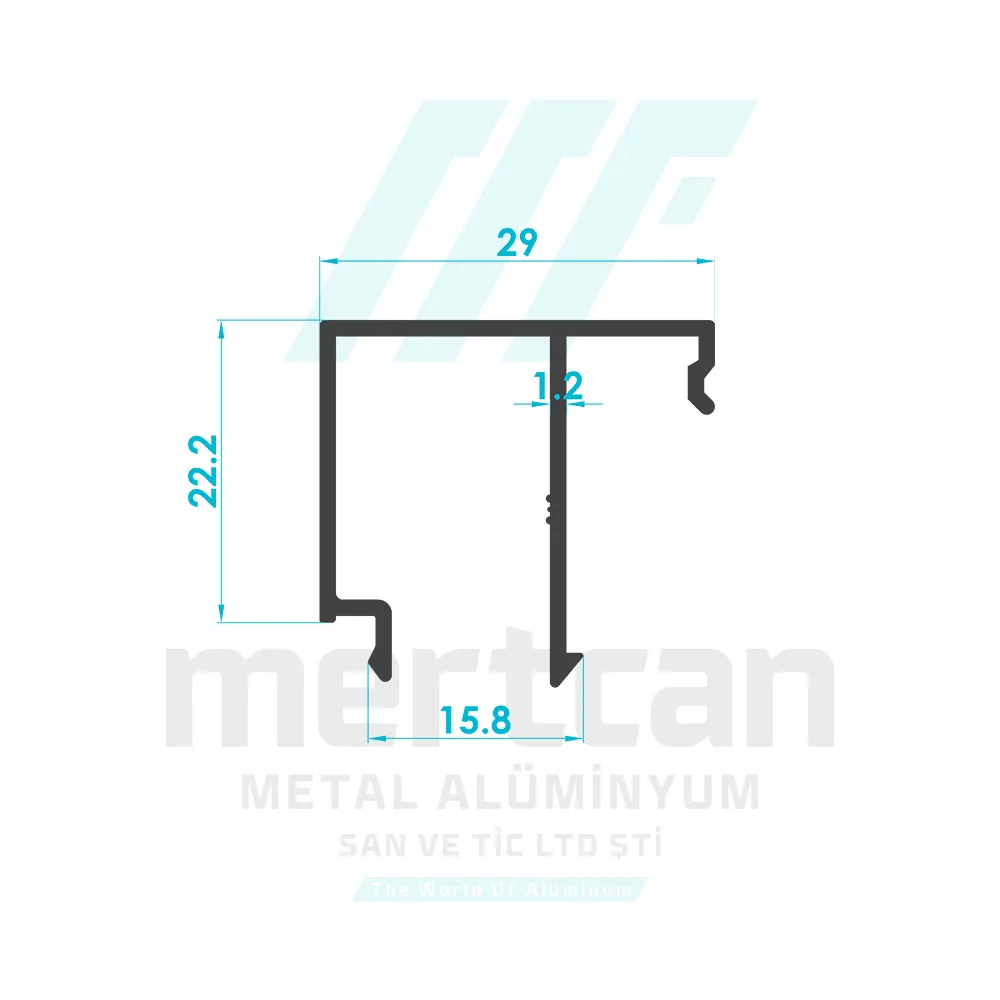

C60 Special Panel-Glass Bead (29mm)

Product Code: 3309

Weight: 0.299 kg/m

It is a wide-slot bead designed for 29mm thick special filling panels or thick glasses.

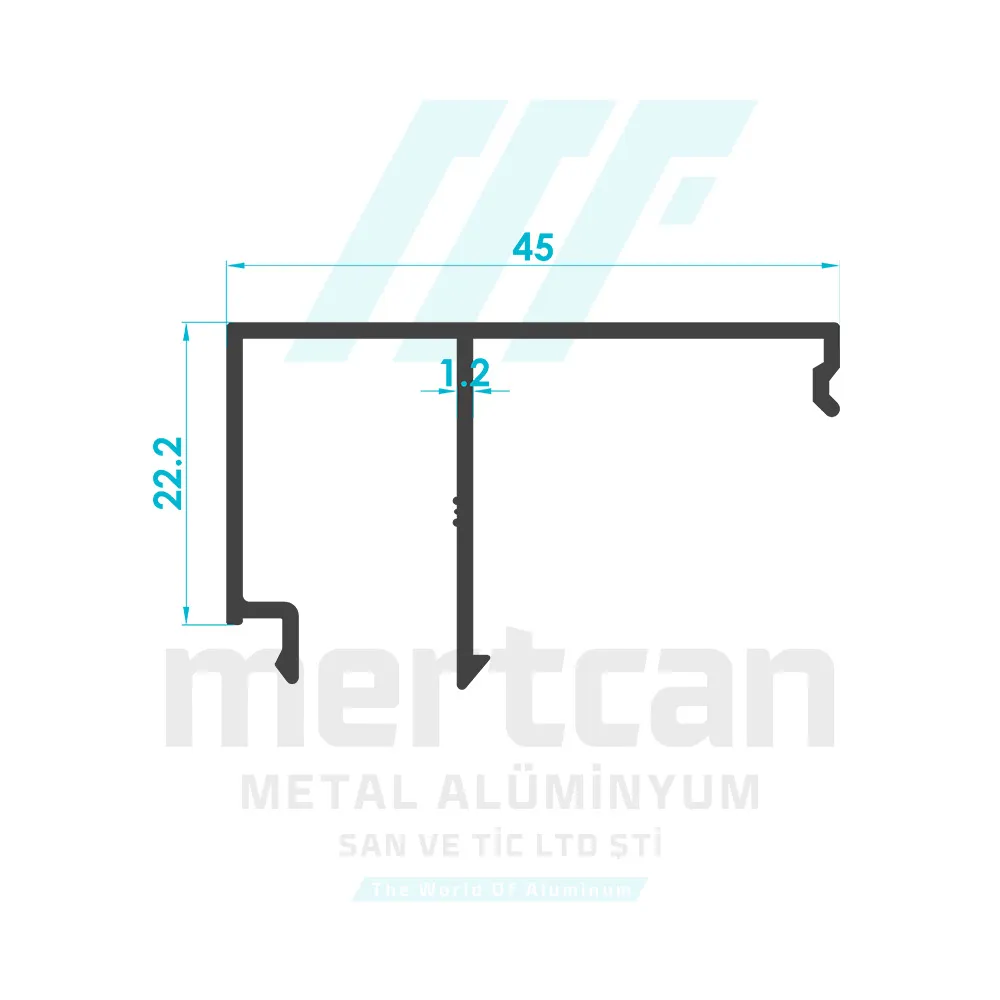

C60 Special Panel-Glass Bead (45mm)

Product Code: 3310

Weight: 0.352 kg/m

It is an extra wide bead allowing 45mm sandwich panel installation in industrial doors.

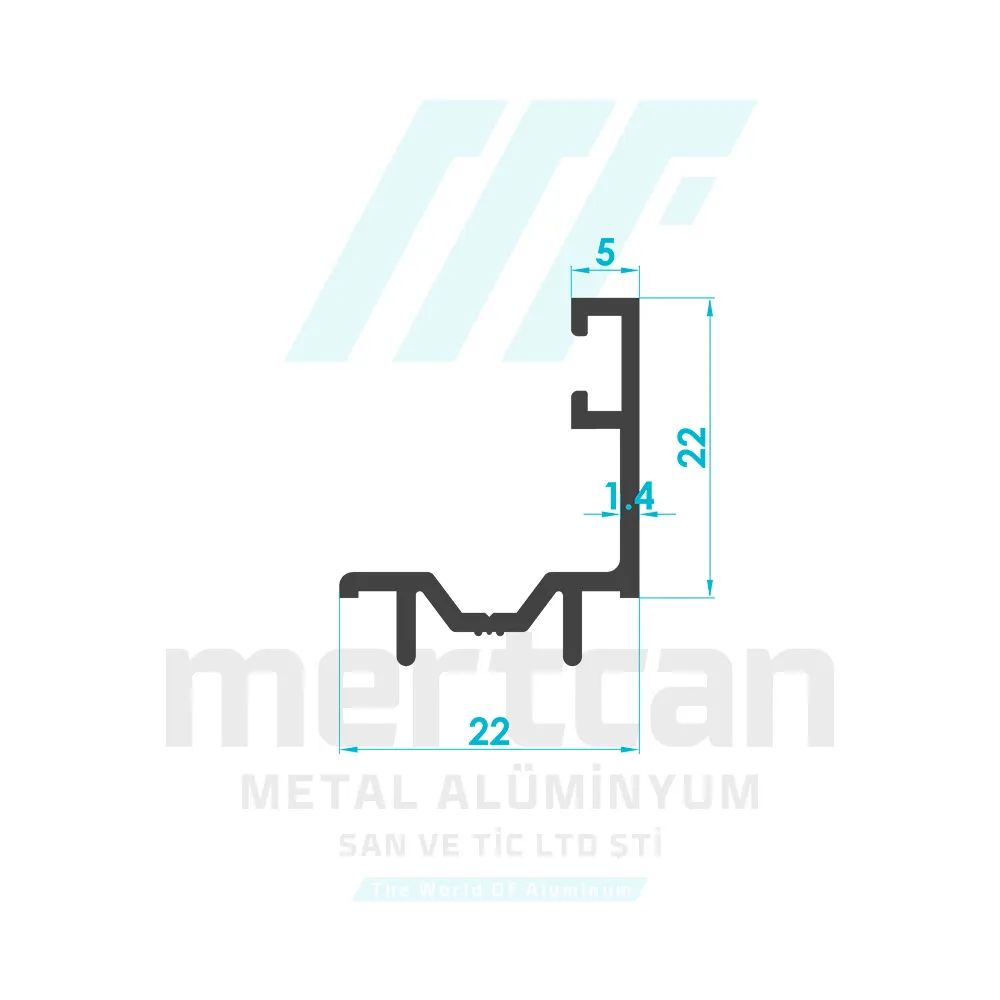

C60 Special Screwed Panel-Glass Bead (5mm)

Product Code: 3311

Weight: 0.249 kg/m

Offering screw mounting possibility, it ensures more rigid fixation of 5mm panels or plexiglass to the frame.

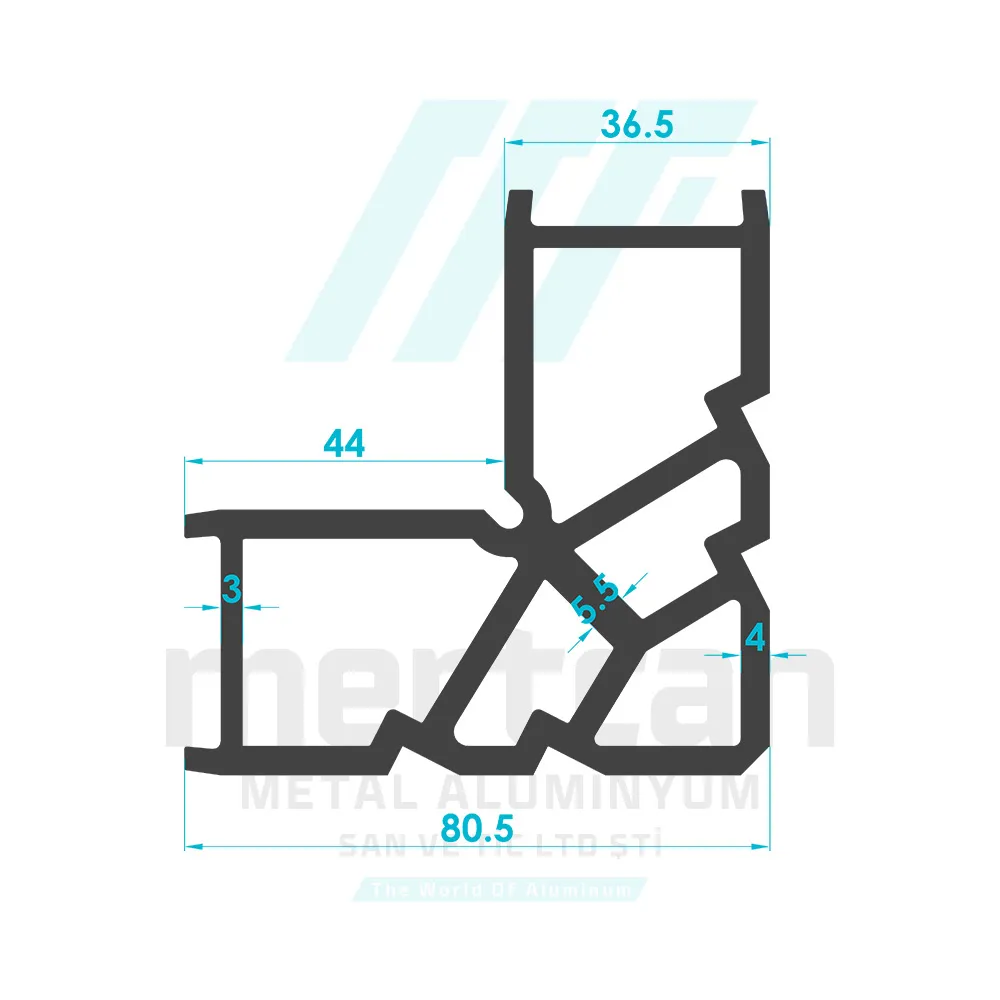

C60 Corner Cleat Profile

Product Code: 3893

Weight: 4.472 kg/m

Used in corner joints of C60 profiles, it is a very strong, cuttable cleat profile weighing 4.4 kg.
