Aldoks System Profiles

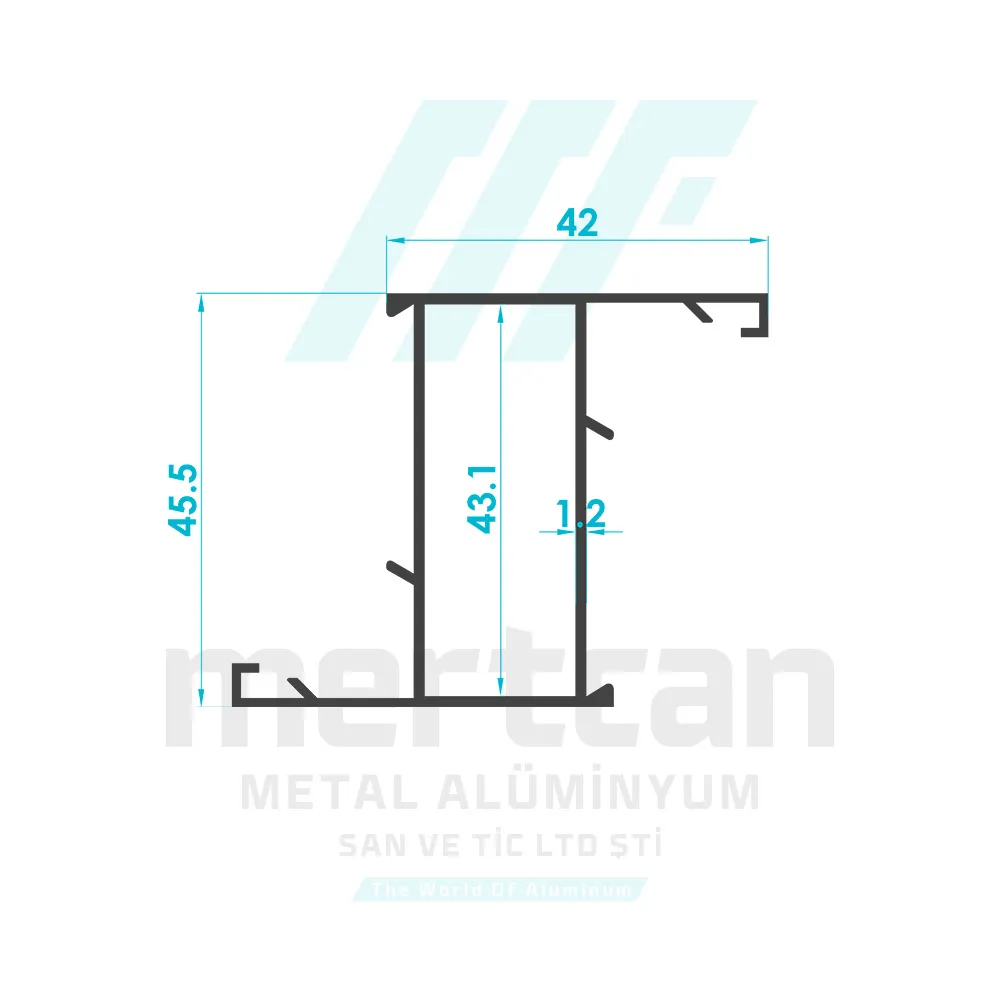

Aldoks Narrow Series Sash Profile

Product Code: 1265

Weight: 0.613 kg/m

Used in narrow series windows with its economical and light structure, it is a practical sash profile compatible with insulation seals.

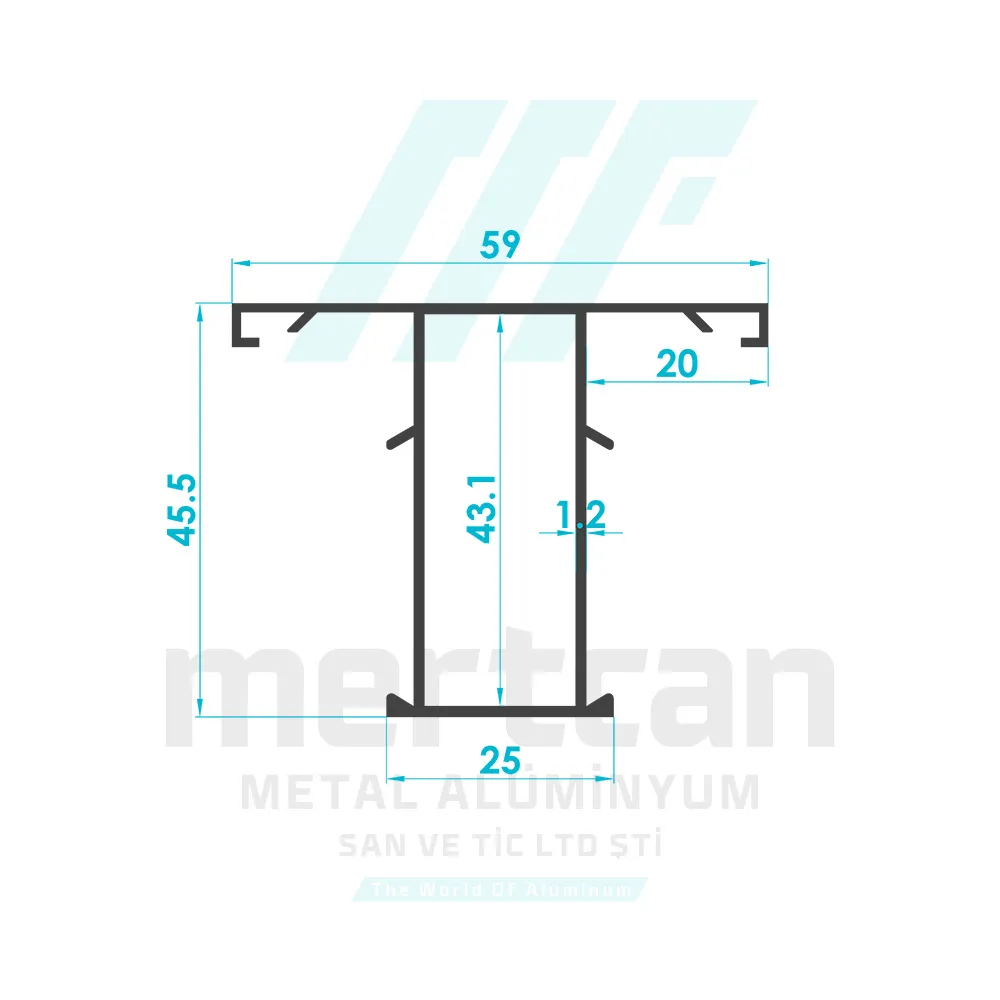

Aldoks Narrow Series Mullion Profile

Product Code: 1266

Weight: 0.613 kg/m

Used to create window partitions in narrow series systems, it is a strong mullion weighing 0.6 kg.

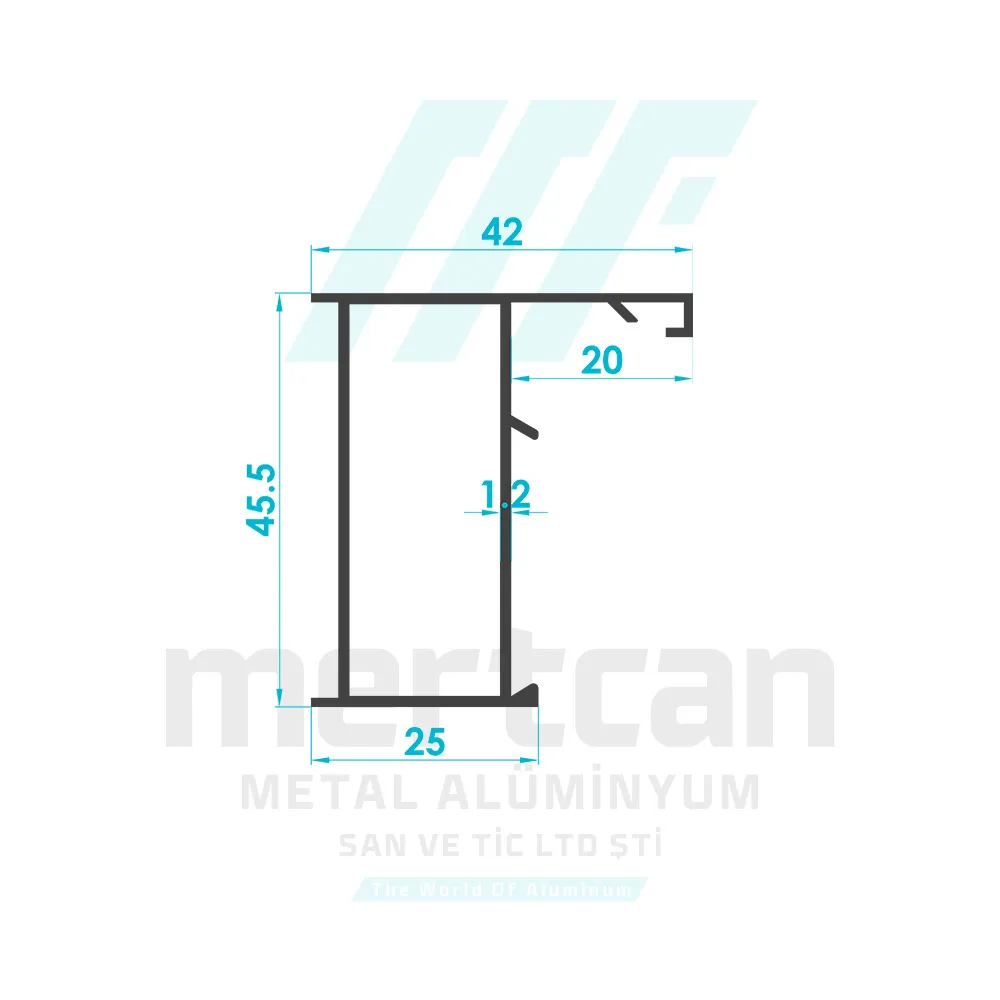

Aldoks Narrow Series Frame Profile

Product Code: 1267

Weight: 0.525 kg/m

Ideal for light-structured windows, it is an easy-to-wall-mount and economical frame solution.

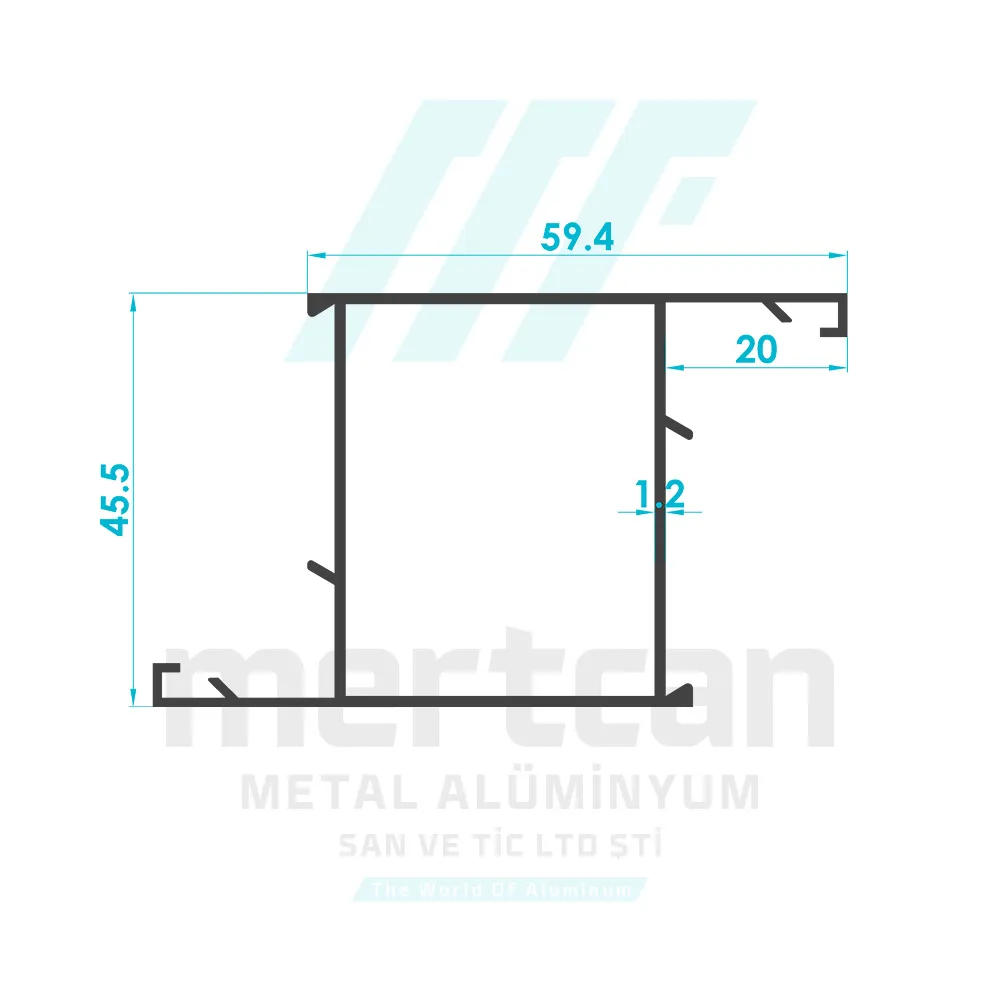

Aldoks Full Series Sash Profile

Product Code: 1268

Weight: 0.726 kg/m

Used in standard Aldoks joinery, it is a sash profile with increased wall thickness providing better insulation.

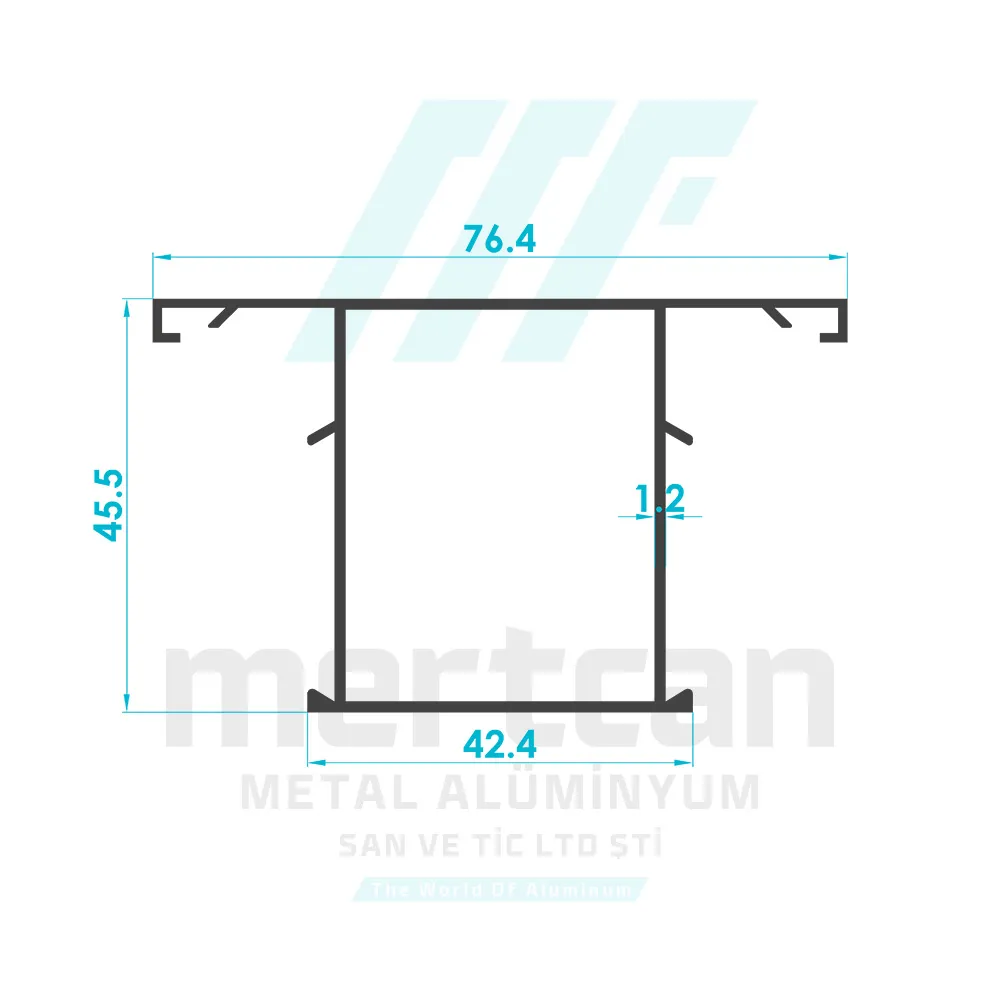

Aldoks Narrow Series Mullion Profile

Product Code: 1269

Weight: 0.726 kg/m

It is a reinforced mullion profile weighing 0.7 kg, increasing the wind resistance of the system and carrying the glass load.

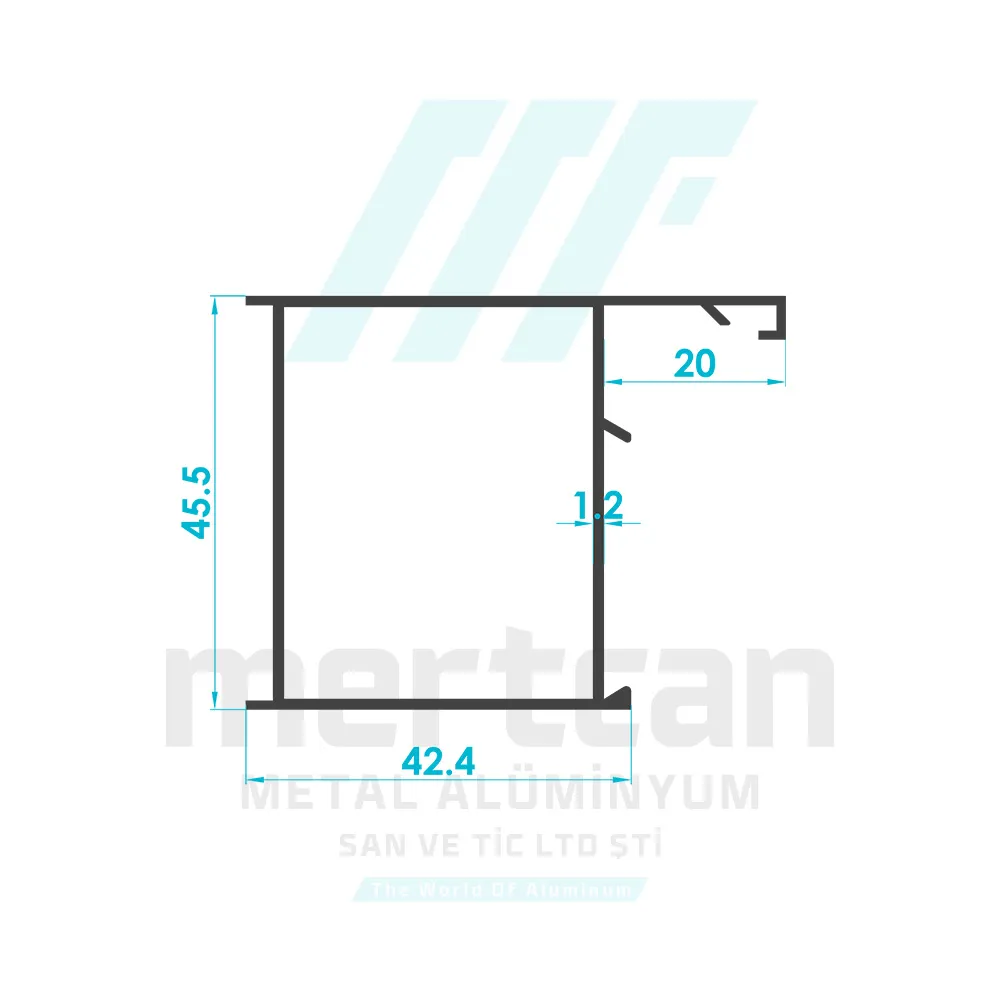

Aldoks Narrow Series Frame Profile

Product Code: 1270

Weight: 0.636 kg/m

Despite being a narrow series, it is a durable frame profile preventing sash sagging with its reinforced structure.

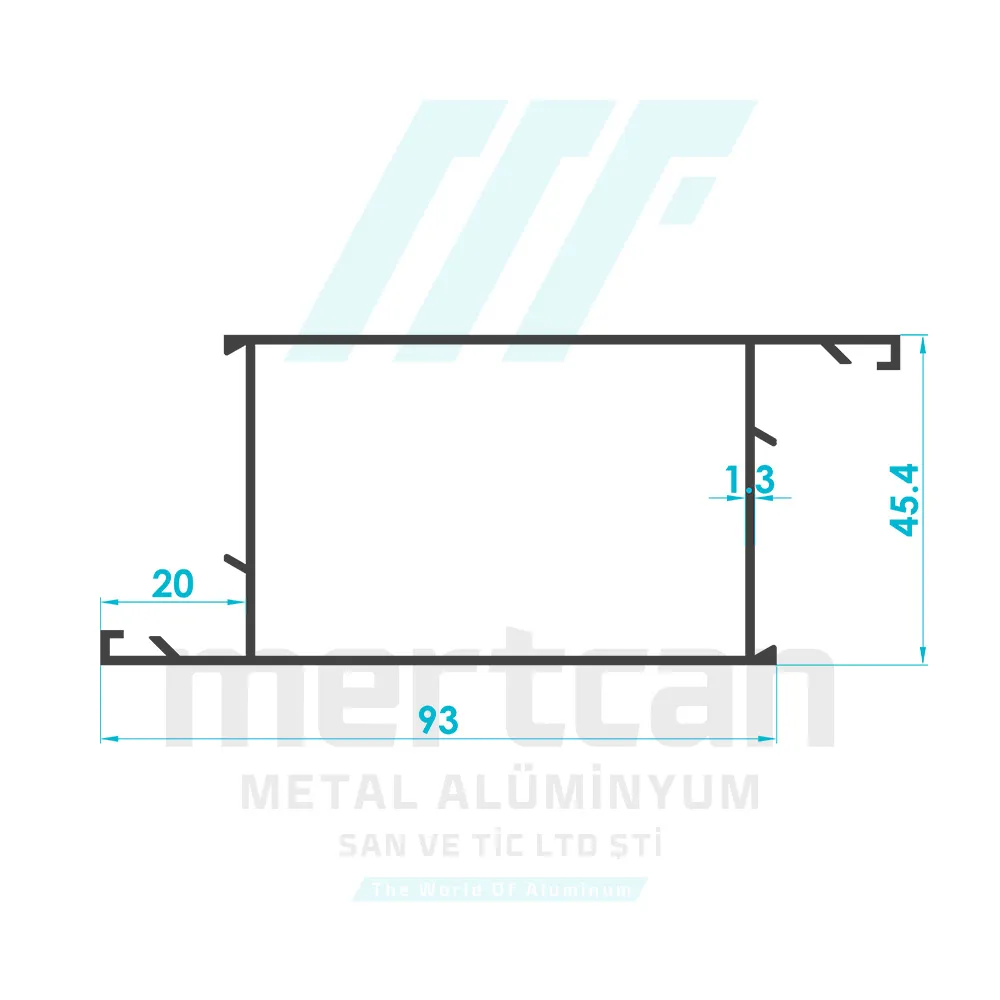

Aldoks Wide Series Sash - Door Profile

Product Code: 1346

Weight: 1.054 kg/m

Weighing over 1 kg, it is a wide sash profile designed for balcony doors and heavily used passages.

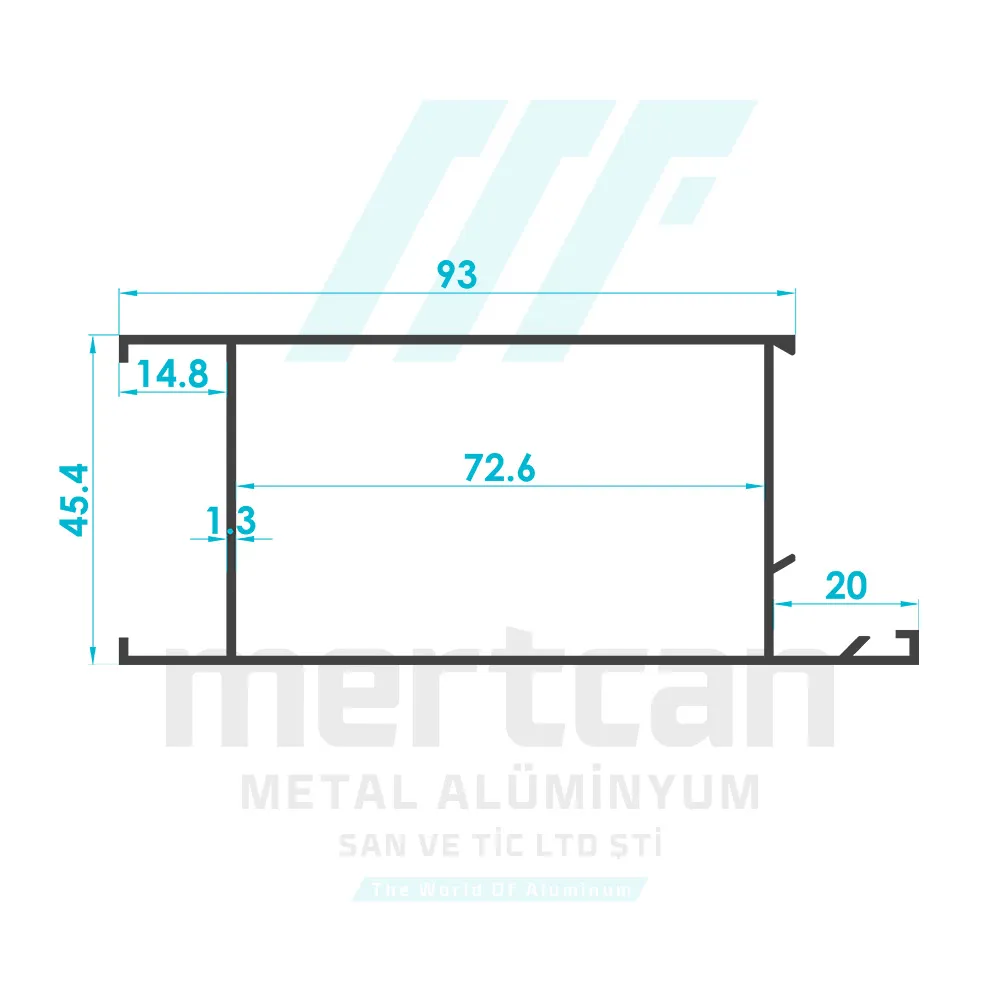

Aldoks Kick Plate Profile

Product Code: 1347

Weight: 1.084 kg/m

Used under doors, also known as a kick plate, it is a wide profile providing extra protection against impacts.

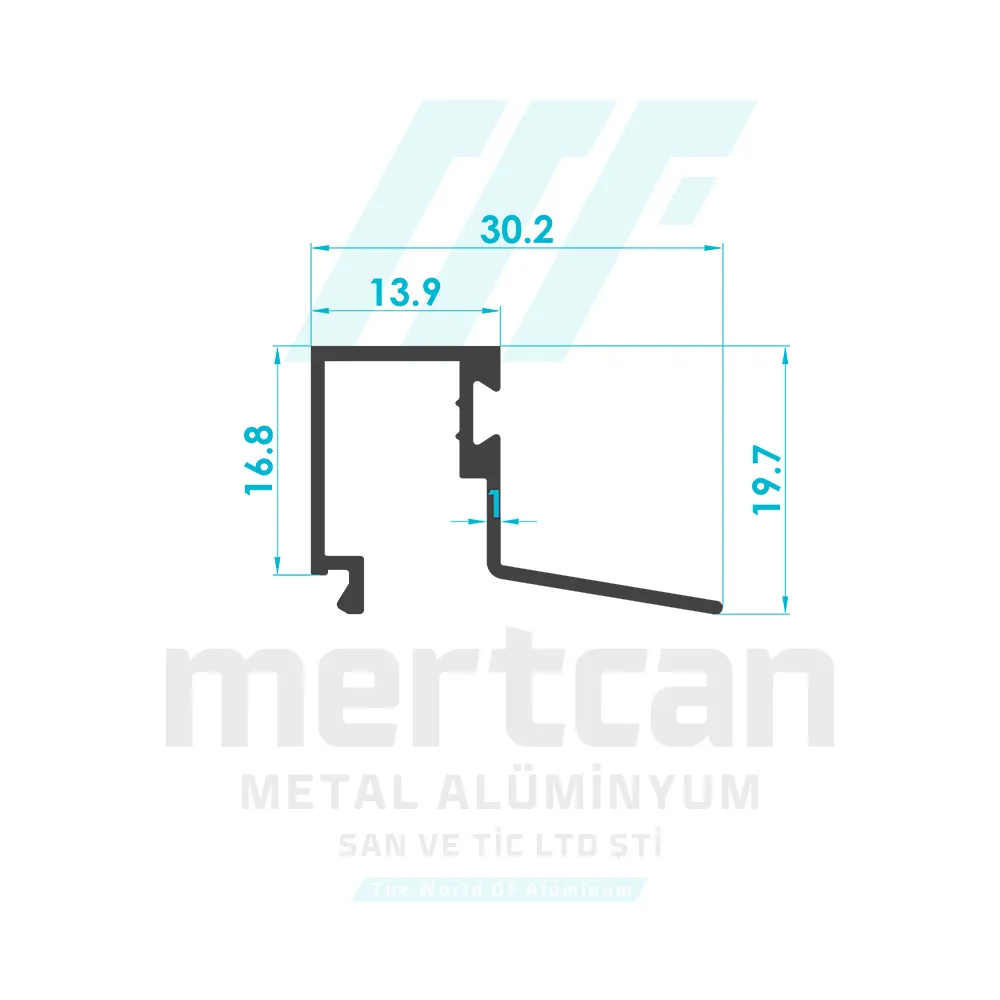

Aldoks Double Glazing Bead

Product Code: 1273

Weight: 0.217 kg/m

In double glazing applications, it is a standard bead fixing the glass to the frame, featuring a sealing gasket slot.

Aldoks Single Glazing Bead

Product Code: 1274

Weight: 0.228 kg/m

In single-glazed partitions, it is a compressing profile preventing the glass from shaking by filling the glass gap.

Aldoks Narrow Series Corner Cleat

Product Code: 1600

Weight: 0.591 kg/m

It is a corner cleat suitable for press fitting, enabling 45-degree cut installation in corner joints of narrow series profiles.

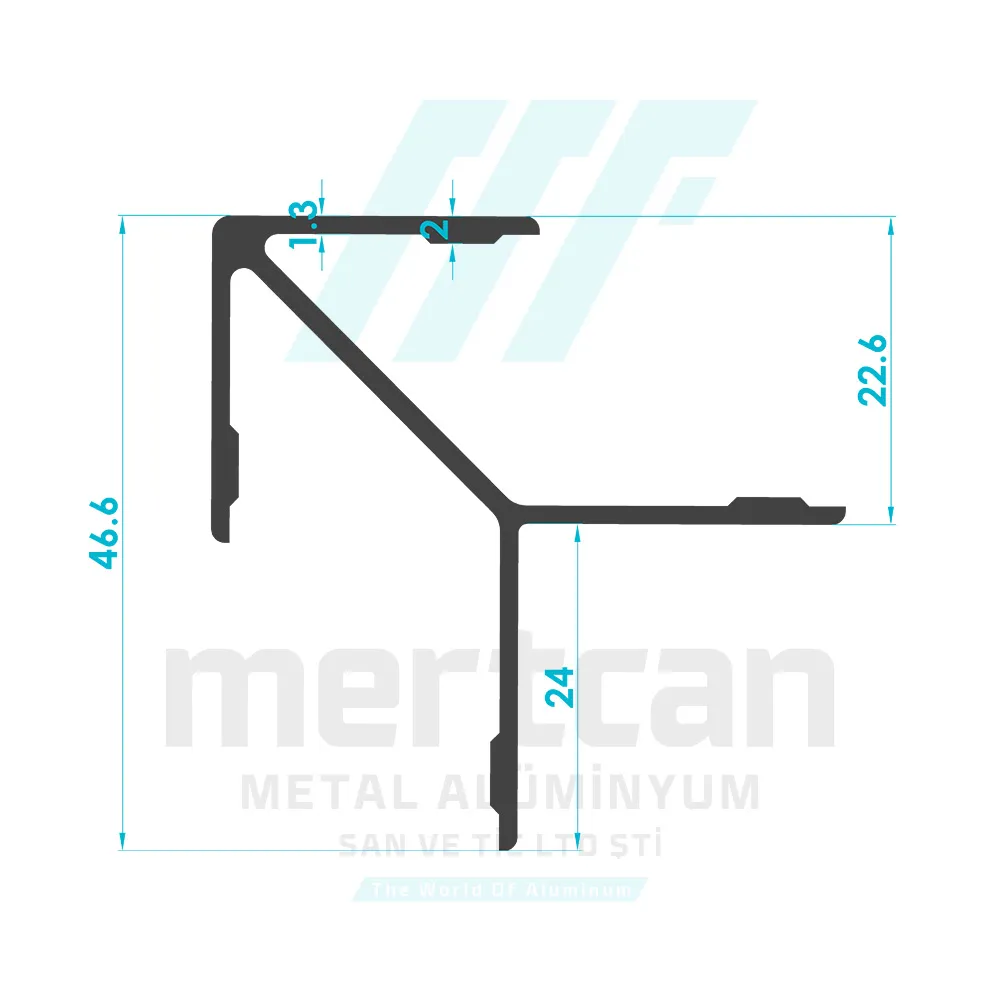

Aldoks Full Series Corner Cleat

Product Code: 3827

Weight: 1.139 kg/m

Increasing the corner strength of full series wide profiles, it is a thick-walled corner connection element weighing 1.1 kg.

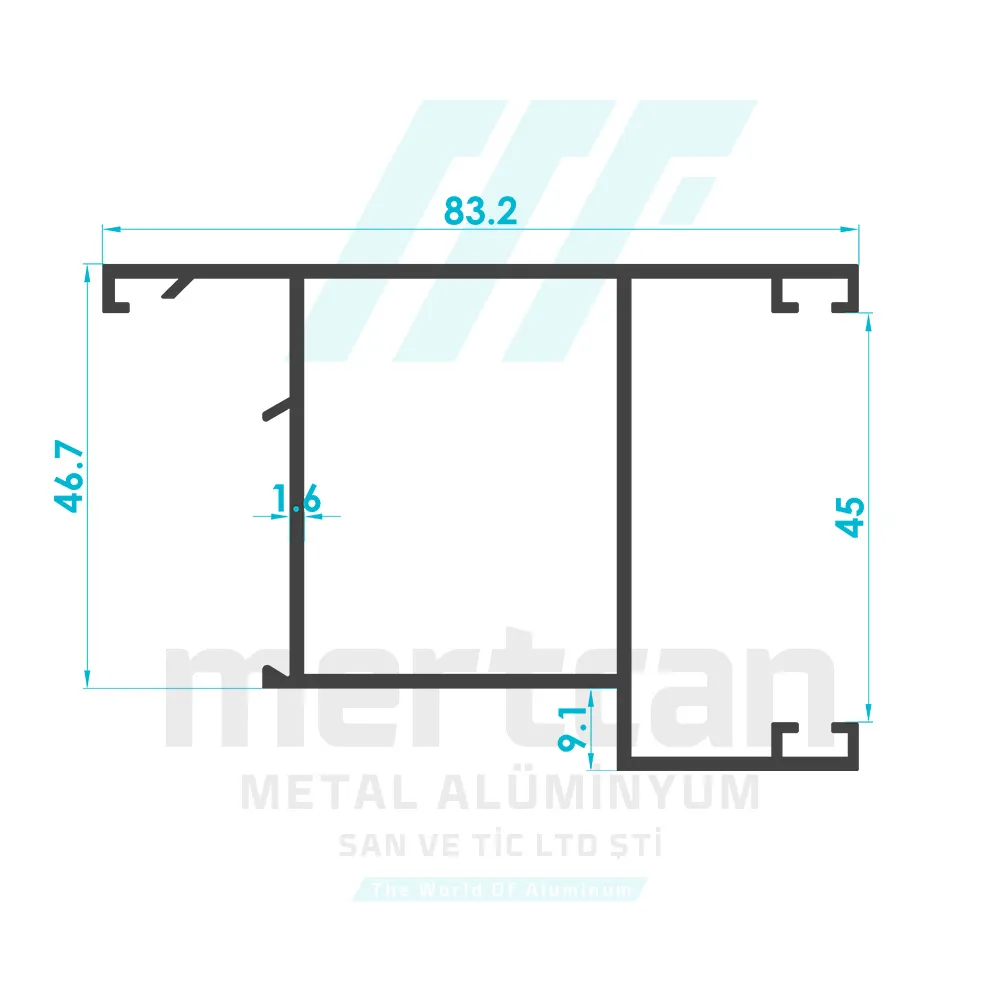

Aldoks Full Series Special Panel Sash Profile

Product Code: 1785

Weight: 1.179 kg/m

Designed to be used with paneling or special panel fillings, it is an ideal sash profile for decorative door applications.
